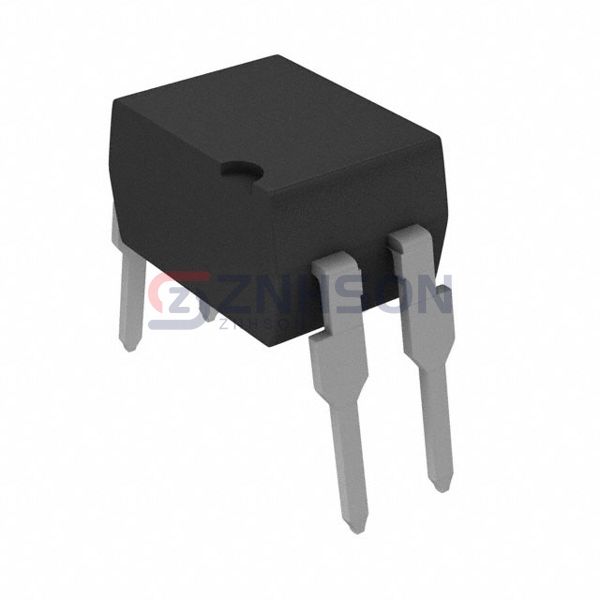

TCET1109
Vishay Semiconductor Opto Division
Vishay Semiconductor Opto Division
OPTOISOLATR 5KV TRANSISTOR 4-DIP
$0.60
Available to order
Reference Price (USD)
1+
$0.59000
10+
$0.45600
25+
$0.38040
100+
$0.32760
250+
$0.29252
500+
$0.25156
1,000+
$0.19422
4,000+
$0.17550
8,000+
$0.16380
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Vishay Semiconductor Opto Division presents the TCET1109 Optoisolators - Transistor, Photovoltaic Output, designed for precision and reliability in harsh environments. These isolators are commonly used in robotics, HVAC systems, and power electronics, providing excellent noise immunity and thermal stability. Trusted by engineers globally, Vishay Semiconductor Opto Division ensures top-tier quality and performance. Interested? Send us your inquiry and discover the perfect fit for your application!
Specifications
- Product Status: Active
- Number of Channels: 1
- Voltage - Isolation: 5000Vrms
- Current Transfer Ratio (Min): 200% @ 5mA
- Current Transfer Ratio (Max): 400% @ 5mA
- Turn On / Turn Off Time (Typ): 6µs, 5µs
- Rise / Fall Time (Typ): 3µs, 4.7µs
- Input Type: DC
- Output Type: Transistor
- Voltage - Output (Max): 70V
- Current - Output / Channel: 50mA
- Voltage - Forward (Vf) (Typ): 1.25V
- Current - DC Forward (If) (Max): 60 mA
- Vce Saturation (Max): 300mV
- Operating Temperature: -40°C ~ 100°C
- Mounting Type: Through Hole
- Package / Case: 4-DIP (0.300", 7.62mm)
- Supplier Device Package: 4-DIP
