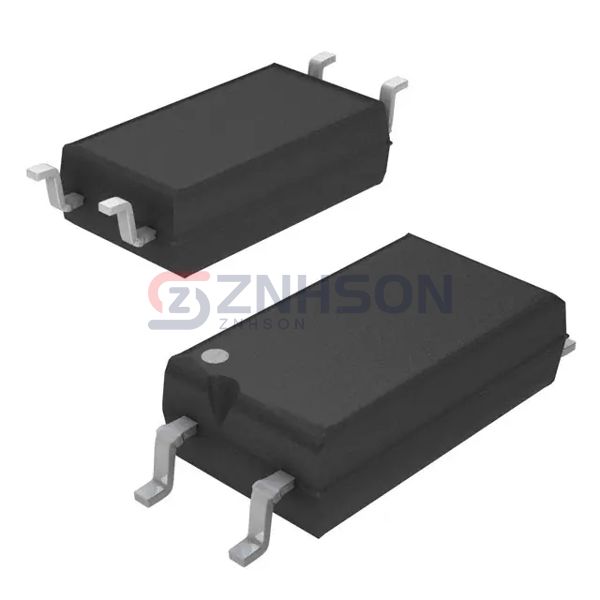

TCLT1002
Vishay Semiconductor Opto Division
Vishay Semiconductor Opto Division
OPTOISOLATR 5KV TRANSISTOR 4-SOP
$0.72
Available to order
Reference Price (USD)
3,000+
$0.21980
6,000+
$0.21195
15,000+
$0.20881
30,000+
$0.20410
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Experience superior signal isolation with Vishay Semiconductor Opto Division's TCLT1002 Optoisolators - Transistor, Photovoltaic Output. These components are ideal for data acquisition, process control, and safety systems, offering fast response times and high insulation resistance. With Vishay Semiconductor Opto Division's commitment to innovation, you can expect cutting-edge solutions for your technical challenges. Reach out now to request a quote and elevate your designs!
Specifications
- Product Status: Active
- Number of Channels: 1
- Voltage - Isolation: 5000Vrms
- Current Transfer Ratio (Min): 63% @ 10mA
- Current Transfer Ratio (Max): 125% @ 10mA
- Turn On / Turn Off Time (Typ): 6µs, 5µs
- Rise / Fall Time (Typ): 3µs, 4.7µs
- Input Type: DC
- Output Type: Transistor
- Voltage - Output (Max): 70V
- Current - Output / Channel: 50mA
- Voltage - Forward (Vf) (Typ): 1.25V
- Current - DC Forward (If) (Max): 60 mA
- Vce Saturation (Max): 300mV
- Operating Temperature: -55°C ~ 100°C
- Mounting Type: Surface Mount
- Package / Case: 4-SMD, Gull Wing
- Supplier Device Package: 4-SOP
