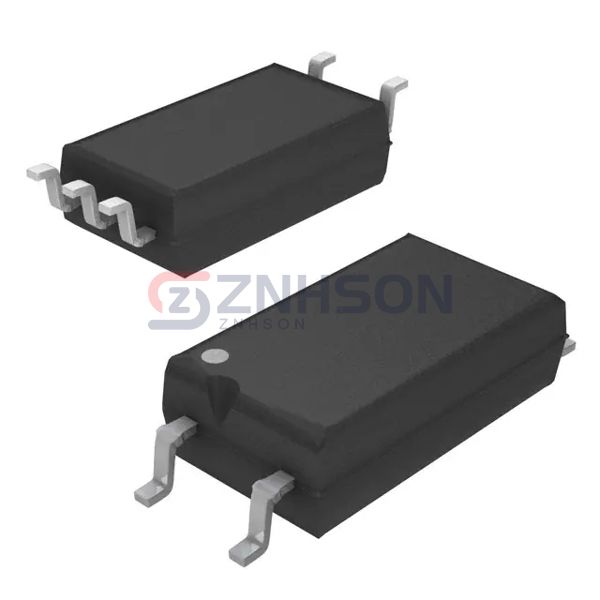

TCLT1104
Vishay Semiconductor Opto Division
Vishay Semiconductor Opto Division
OPTOISO 5KV TRANS W/BASE SOP-6L5
$0.73
Available to order
Reference Price (USD)
3,000+
$0.22400
6,000+
$0.21600
15,000+
$0.21280
30,000+
$0.20800
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Vishay Semiconductor Opto Division presents the TCLT1104 Optoisolators - Transistor, Photovoltaic Output, designed for precision and reliability in harsh environments. These isolators are commonly used in robotics, HVAC systems, and power electronics, providing excellent noise immunity and thermal stability. Trusted by engineers globally, Vishay Semiconductor Opto Division ensures top-tier quality and performance. Interested? Send us your inquiry and discover the perfect fit for your application!
Specifications
- Product Status: Active
- Number of Channels: 1
- Voltage - Isolation: 5000Vrms
- Current Transfer Ratio (Min): 160% @ 10mA
- Current Transfer Ratio (Max): 320% @ 10mA
- Turn On / Turn Off Time (Typ): 6µs, 5µs
- Rise / Fall Time (Typ): 3µs, 4.7µs
- Input Type: DC
- Output Type: Transistor with Base
- Voltage - Output (Max): 80V
- Current - Output / Channel: 50mA
- Voltage - Forward (Vf) (Typ): 1.25V
- Current - DC Forward (If) (Max): 60 mA
- Vce Saturation (Max): 300mV
- Operating Temperature: -55°C ~ 100°C
- Mounting Type: Surface Mount
- Package / Case: 6-SOIC (0.295", 7.50mm Width), 5 Leads
- Supplier Device Package: 6-SOP, 5 Pin
