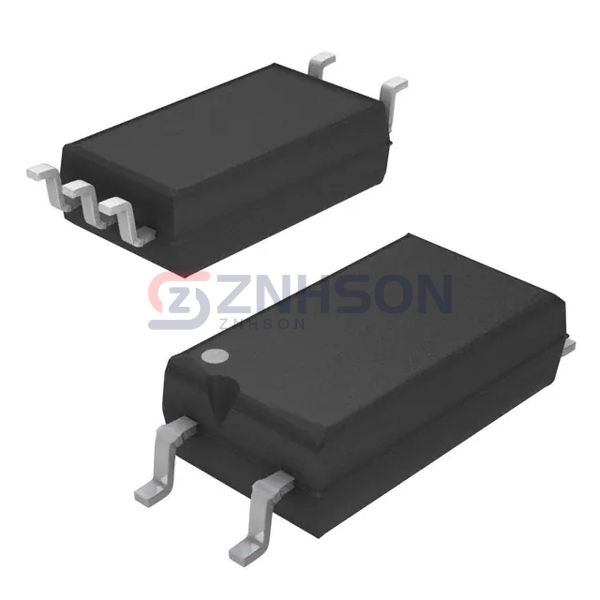

TCLT1114
Vishay Semiconductor Opto Division
Vishay Semiconductor Opto Division
OPTOISO 5KV TRANS W/BASE SOP-6L5
$0.26
Available to order
Reference Price (USD)
3,000+
$0.25200
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover high-quality TCLT1114 Optoisolators with Photovoltaic Output from Vishay Semiconductor Opto Division, designed for reliable signal isolation in various electronic applications. These optoisolators feature excellent noise immunity, high voltage isolation, and stable performance, making them ideal for industrial automation, medical equipment, and communication systems. Whether you need to protect sensitive circuits or ensure signal integrity, our optoisolators deliver unmatched reliability. Contact us today for a quote and find the perfect solution for your needs!
Specifications
- Product Status: Active
- Number of Channels: 1
- Voltage - Isolation: 5000Vrms
- Current Transfer Ratio (Min): 160% @ 10mA
- Current Transfer Ratio (Max): 320% @ 10mA
- Turn On / Turn Off Time (Typ): 6µs, 5µs
- Rise / Fall Time (Typ): 3µs, 4.7µs
- Input Type: DC
- Output Type: Transistor with Base
- Voltage - Output (Max): 70V
- Current - Output / Channel: 50mA
- Voltage - Forward (Vf) (Typ): 1.25V
- Current - DC Forward (If) (Max): 60 mA
- Vce Saturation (Max): 300mV
- Operating Temperature: -55°C ~ 110°C
- Mounting Type: Surface Mount
- Package / Case: 6-SOIC (0.295", 7.50mm Width), 5 Leads
- Supplier Device Package: 6-SOP, 5 Pin
