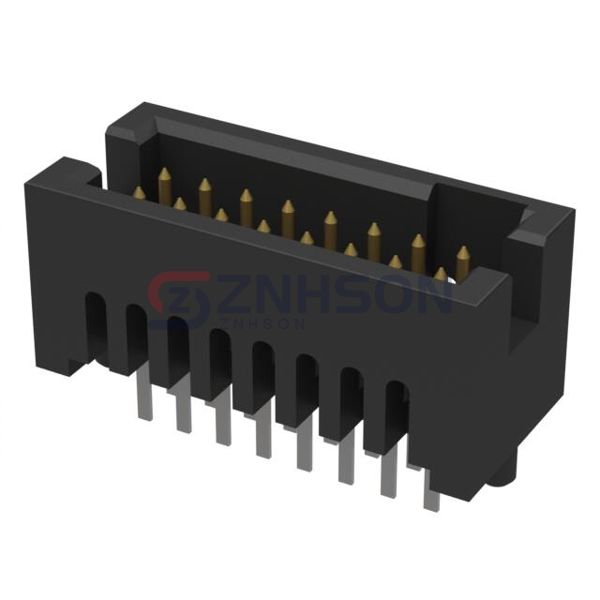

TFC-108-01-F-D-A
Samtec Inc.
Samtec Inc.
.050 X .050 TERMINAL STRIP
$4.04
Available to order
Reference Price (USD)
1+
$2.49000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The TFC-108-01-F-D-A Samtec Inc. Rectangular Connectors - Headers, Male Pins offer unmatched reliability for your electronic assembly needs. With features like corrosion resistance, high-temperature tolerance, and easy mating, these connectors are suited for aerospace, medical devices, and more. Trust Samtec Inc. for top-tier connectivity solutions. Interested? Get in touch today for pricing and availability!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.050" (1.27mm)
- Number of Positions: 16
- Number of Rows: 2
- Row Spacing - Mating: 0.050" (1.27mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.131" (3.33mm)
- Contact Length - Post: 0.078" (1.98mm)
- Overall Contact Length: -
- Insulation Height: 0.220" (5.60mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 3.00µin (0.076µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: Board Guide
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3.1A per Contact
- Voltage Rating: 275VAC
