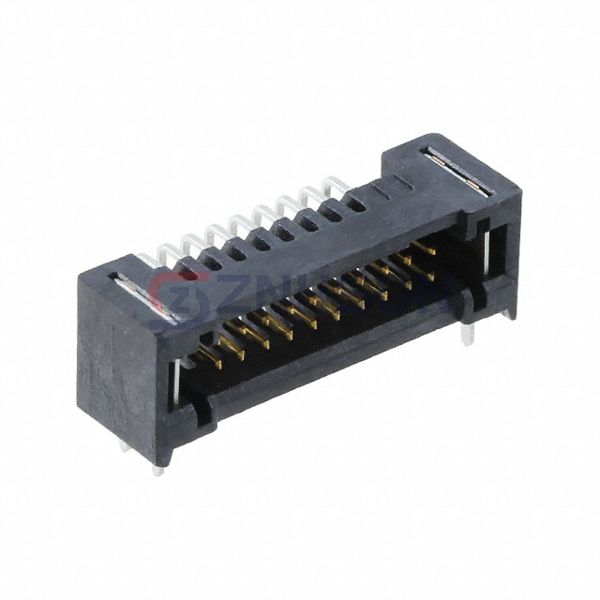

TFM-110-01-L-D-RE1-WT
Samtec Inc.
Samtec Inc.
CONN HEADER R/A 20POS 1.27MM
$7.81
Available to order
Reference Price (USD)
1+
$4.88000
28+
$4.29000
112+
$3.90000
504+
$3.31500
1,008+
$2.82750
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Experience top-tier connectivity with TFM-110-01-L-D-RE1-WT Samtec Inc. Rectangular Connectors - Headers, Male Pins. These connectors offer superior signal integrity, easy assembly, and long-term reliability for diverse applications. Whether for automotive, industrial, or consumer electronics, Samtec Inc. has you covered. Interested? Reach out to us for expert advice and competitive pricing!
Specifications
- Product Status: Active
- Connector Type: Header, Elevated
- Contact Type: Male Pin
- Pitch - Mating: 0.050" (1.27mm)
- Number of Positions: 20
- Number of Rows: 2
- Row Spacing - Mating: 0.050" (1.27mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.139" (3.53mm)
- Contact Length - Post: 0.078" (1.98mm)
- Overall Contact Length: -
- Insulation Height: 0.256" (6.50mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 15.0µin (0.38µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: Solder Retention
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 2.9A per Contact
- Voltage Rating: 275VAC
Related Products
Samtec Inc.
TMM-108-06-G-S
Samtec Inc.

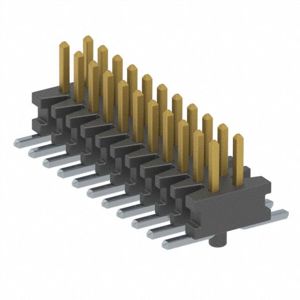

FTMH-111-02-L-DV-A-P
3M

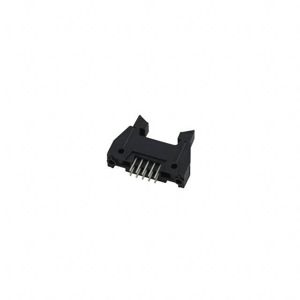

N3793-6202RB
Molex
0022051122
Preci-Dip

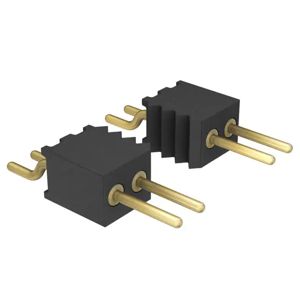

850-10-029-40-251101
Samtec Inc.

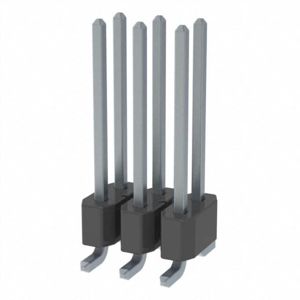

TSM-103-03-T-DV-TR
Sullins Connector Solutions

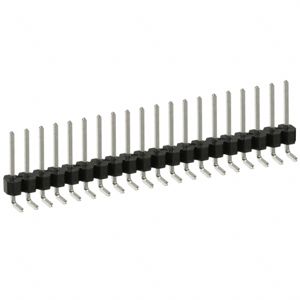

PEC20SGAN
Sullins Connector Solutions

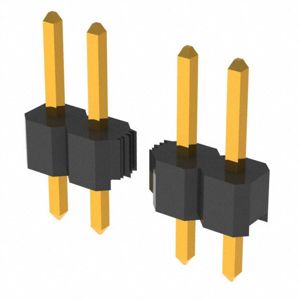

PRPC026SAAN-RC
