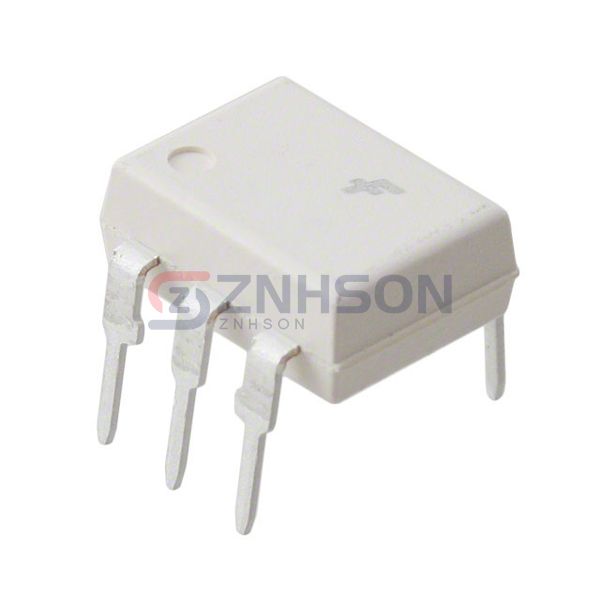

TIL117M
onsemi
onsemi
OPTOISO 7.5KV TRANS W/BASE 6DIP
$0.66
Available to order
Reference Price (USD)
1+
$0.69000
10+
$0.53600
100+
$0.38500
500+
$0.29562
1,000+
$0.22825
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Maximize your system's efficiency with TIL117M Optoisolators by onsemi, designed for Photovoltaic Output applications. These isolators are perfect for isolating digital signals, protecting microcontrollers, and ensuring safe operation in high-voltage environments. Suitable for consumer electronics, aerospace, and defense applications, they deliver consistent performance under extreme conditions. Get started today contact us for more details and a customized solution!
Specifications
- Product Status: Active
- Number of Channels: 1
- Voltage - Isolation: 7500Vpk
- Current Transfer Ratio (Min): 50% @ 10mA
- Current Transfer Ratio (Max): -
- Turn On / Turn Off Time (Typ): 10µs, 10µs (Max)
- Rise / Fall Time (Typ): 2µs, 2µs
- Input Type: DC
- Output Type: Transistor with Base
- Voltage - Output (Max): 30V
- Current - Output / Channel: -
- Voltage - Forward (Vf) (Typ): 1.2V
- Current - DC Forward (If) (Max): 60 mA
- Vce Saturation (Max): 400mV
- Operating Temperature: -40°C ~ 100°C
- Mounting Type: Through Hole
- Package / Case: 6-DIP (0.300", 7.62mm)
- Supplier Device Package: 6-DIP
