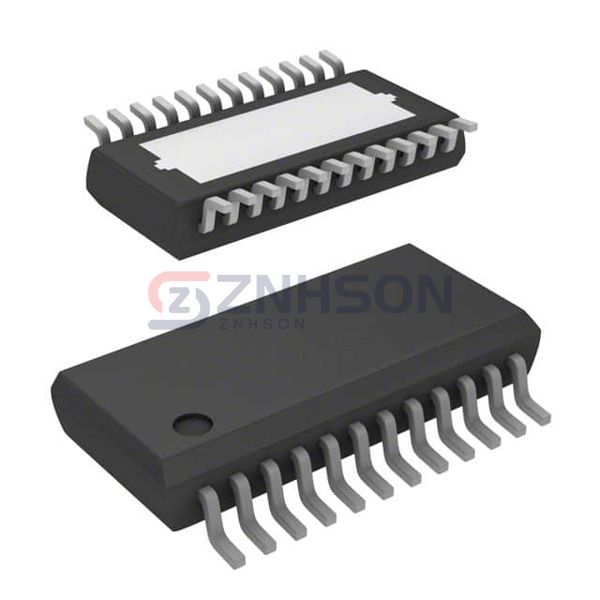

TLE84110ELXUMA1
Infineon Technologies
Infineon Technologies
IC HALF-BRIDGE DRVR 10CH 24SSOP
$8.01
Available to order
Reference Price (USD)
2,500+
$3.14832
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The Infineon Technologies TLE84110ELXUMA1 series offers versatile full/half-bridge driver solutions for modern power electronics. Featuring dual MOSFET gate drivers with independent inputs, these PMICs provide exceptional flexibility in motor control and switched-mode power supply designs. Advanced protection mechanisms include undervoltage lockout and thermal shutdown, while the high-current drive capability ensures efficient switching of power transistors. Suitable for industrial, automotive, and consumer applications. Request technical documentation or samples through our quick inquiry form.
Specifications
- Product Status: Not For New Designs
- Output Configuration: Half Bridge (10)
- Applications: DC Motors, General Purpose
- Interface: SPI
- Load Type: Inductive
- Technology: DMOS
- Rds On (Typ): 800mOhm LS, 800mOhm HS
- Current - Output / Channel: -
- Current - Peak Output: -
- Voltage - Supply: 3V ~ 5.5V
- Voltage - Load: 7V ~ 18V
- Operating Temperature: -40°C ~ 150°C (TJ)
- Features: -
- Fault Protection: Open Load Detect, Over Temperature, Short Circuit, UVLO
- Mounting Type: Surface Mount
- Package / Case: 24-LSSOP (0.154", 3.90mm Width) Exposed Pad
- Supplier Device Package: PG-SSOP-24-4
