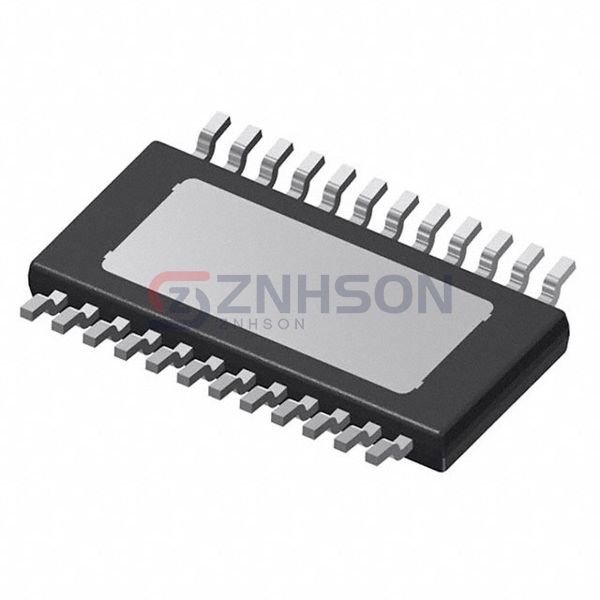

TLE94106ESXUMA1
Infineon Technologies
Infineon Technologies
IC DRIVER HALF-BRIDGE 24TSDSO
$3.08
Available to order
Reference Price (USD)
3,000+
$1.78920
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Infineon Technologies TLE94106ESXUMA1 full/half-bridge drivers set new standards in power management integration. These advanced PMICs combine high-side and low-side drivers with intelligent protection circuits, offering superior performance in harsh electrical environments. Applications span from electric vehicle charging stations to high-power LED lighting systems. With features like shoot-through prevention and adjustable drive current, they provide design flexibility while ensuring system safety. Contact us now for volume pricing and application engineering support.
Specifications
- Product Status: Active
- Output Configuration: Half Bridge (6)
- Applications: DC Motors, General Purpose
- Interface: SPI
- Load Type: Inductive
- Technology: Power MOSFET
- Rds On (Typ): 850mOhm LS, 850mOhm HS
- Current - Output / Channel: 2A
- Current - Peak Output: -
- Voltage - Supply: 3V ~ 5.5V
- Voltage - Load: 5.5V ~ 18V
- Operating Temperature: -40°C ~ 150°C (TJ)
- Features: -
- Fault Protection: Current Limiting, Over Temperature, Short Circuit, UVLO
- Mounting Type: Surface Mount
- Package / Case: 24-TSSOP (0.154", 3.90mm Width) Exposed Pad
- Supplier Device Package: PG-TSDSO-24
