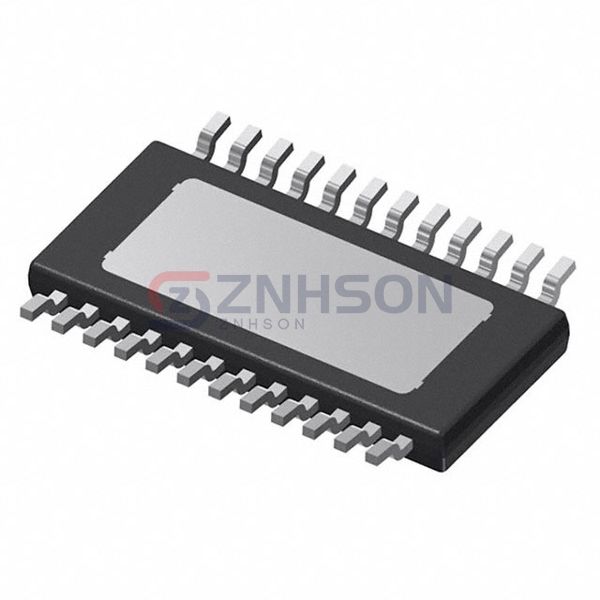

TLE94112ESRPIHATTOBO1
Infineon Technologies
Infineon Technologies
DC_MOTOR_CONTROL
$37.50
Available to order
Reference Price (USD)
1+
$37.50000
500+
$37.125
1000+
$36.75
1500+
$36.375
2000+
$36
2500+
$35.625
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The Infineon Technologies TLE94112ESRPIHATTOBO1 series represents the pinnacle of bridge driver technology for professional power electronics. These PMICs feature advanced PWM interface compatibility, programmable current limiting, and real-time status monitoring for system diagnostics. Perfect for high-power audio systems, automated test equipment, and precision servo controls, they deliver clean switching transitions with minimal ringing. The innovative package design enhances thermal dissipation while reducing PCB footprint. Contact our technical sales team for application notes and design-in assistance with these superior bridge drivers.
Specifications
- Product Status: Active
- Output Configuration: Half Bridge (12)
- Applications: DC Motors, General Purpose
- Interface: Logic, PWM, SPI
- Load Type: Inductive, Capacitive, Resistive
- Technology: -
- Rds On (Typ): 1.3Ohm LS, 1.3Ohm HS
- Current - Output / Channel: -
- Current - Peak Output: -
- Voltage - Supply: 3V ~ 5.5V
- Voltage - Load: 3V ~ 5.5V
- Operating Temperature: -40°C ~ 150°C (TJ)
- Features: Charge Pump
- Fault Protection: Current Limiting, Over Current, Over Temperature, Short Circuit
- Mounting Type: Surface Mount
- Package / Case: 24-TSSOP (0.154", 3.90mm Width) Exposed Pad
- Supplier Device Package: PG-TSDSO-24
