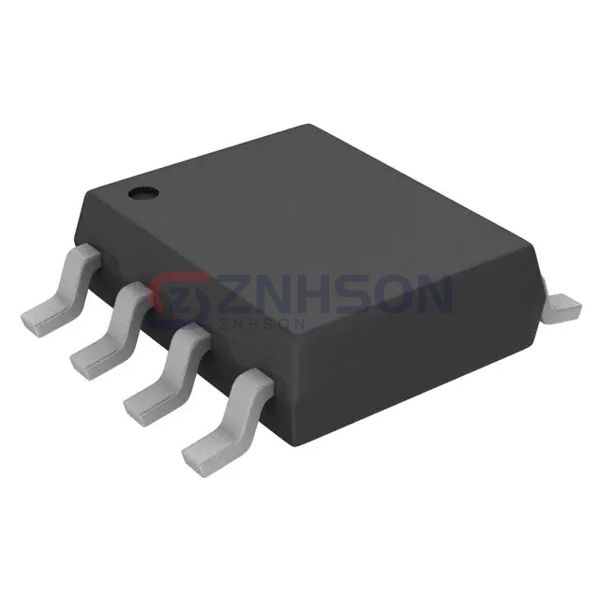

TLP2105(TP,F)
Toshiba Semiconductor and Storage
Toshiba Semiconductor and Storage
HIGH SPEED LOGIC OUTPUT COUPLER;
$1.58
Available to order
Reference Price (USD)
2,500+
$1.68300
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your systems with Toshiba Semiconductor and Storage TLP2105(TP,F) Optoisolators - Logic Output, offering superior isolation and signal integrity. With features like low power consumption, high reliability, and wide operating temperature range, these optoisolators are perfect for use in power supplies, motor controls, and data acquisition systems. Trust Toshiba Semiconductor and Storage for top-tier performance. Request a sample or inquire now!
Specifications
- Product Status: Active
- Number of Channels: 2
- Inputs - Side 1/Side 2: 2/0
- Voltage - Isolation: 2500Vrms
- Common Mode Transient Immunity (Min): 10kV/µs
- Input Type: DC
- Output Type: Push-Pull, Totem Pole
- Current - Output / Channel: 25 mA
- Data Rate: 5Mbps
- Propagation Delay tpLH / tpHL (Max): 250ns, 250ns
- Rise / Fall Time (Typ): 30ns, 30ns
- Voltage - Forward (Vf) (Typ): 1.65V
- Current - DC Forward (If) (Max): 20mA
- Voltage - Supply: 4.5V ~ 20V
- Operating Temperature: -40°C ~ 100°C
- Mounting Type: Surface Mount
- Package / Case: 8-SOIC (0.154", 3.90mm Width)
- Supplier Device Package: 8-SO
