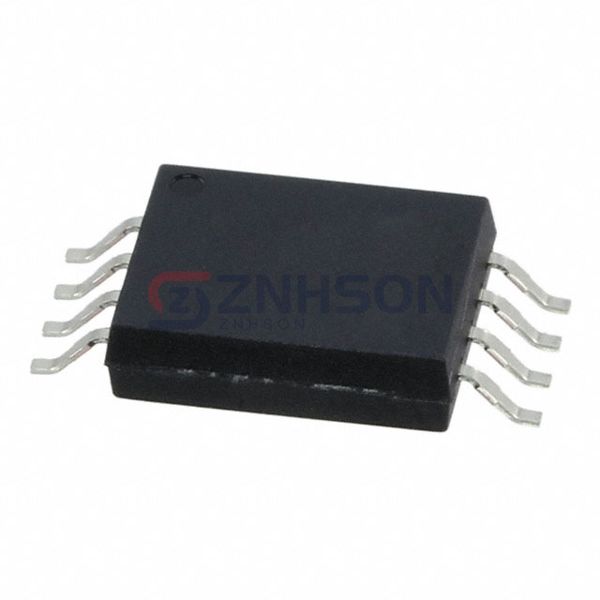

TLP2261(D4-LF4,E
Toshiba Semiconductor and Storage
Toshiba Semiconductor and Storage
HIGH SPEED LOGIC OUTPUT OPTOCOUP
$2.01
Available to order
Reference Price (USD)
75+
$1.49267
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The Toshiba Semiconductor and Storage TLP2261(D4-LF4,E Optoisolators - Logic Output are designed for high-performance signal isolation in critical applications. Featuring robust construction, high noise immunity, and fast response times, these isolators are perfect for use in harsh industrial environments, automotive systems, and smart grids. Partner with Toshiba Semiconductor and Storage for superior quality. Contact us for details!
Specifications
- Product Status: Active
- Number of Channels: 2
- Inputs - Side 1/Side 2: 2/0
- Voltage - Isolation: 5000Vrms
- Common Mode Transient Immunity (Min): 20kV/µs
- Input Type: DC
- Output Type: Push-Pull, Totem Pole
- Current - Output / Channel: 10 mA
- Data Rate: 15MBd
- Propagation Delay tpLH / tpHL (Max): 80ns, 80ns
- Rise / Fall Time (Typ): 3ns, 3ns
- Voltage - Forward (Vf) (Typ): 1.5V
- Current - DC Forward (If) (Max): 10mA
- Voltage - Supply: 2.7V ~ 5.5V
- Operating Temperature: -40°C ~ 125°C
- Mounting Type: Surface Mount
- Package / Case: 8-SOIC (0.295", 7.50mm Width)
- Supplier Device Package: 8-SO
