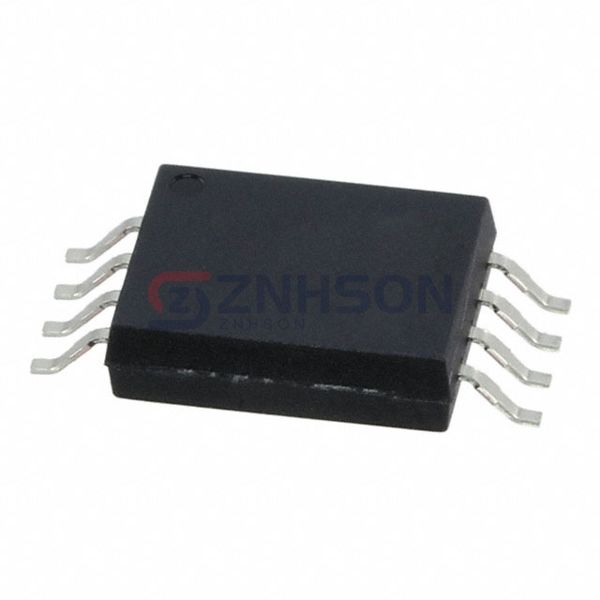

TLP2270(TP4,E
Toshiba Semiconductor and Storage
Toshiba Semiconductor and Storage
PHOTOCOUPLER HI-SPEED LOW INPUT
$2.19
Available to order
Reference Price (USD)
1+
$2.19000
500+
$2.1681
1000+
$2.1462
1500+
$2.1243
2000+
$2.1024
2500+
$2.0805
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Maximize your circuit protection with Toshiba Semiconductor and Storage TLP2270(TP4,E Optoisolators - Logic Output. These isolators provide superior electrical isolation, low power dissipation, and high common-mode rejection, perfect for medical devices, test equipment, and IoT applications. Trust Toshiba Semiconductor and Storage for cutting-edge solutions. Reach out for a customized quote!
Specifications
- Product Status: Active
- Number of Channels: 2
- Inputs - Side 1/Side 2: 2/0
- Voltage - Isolation: 5000Vrms
- Common Mode Transient Immunity (Min): 20kV/µs
- Input Type: DC
- Output Type: Push-Pull, Totem Pole
- Current - Output / Channel: 10 mA
- Data Rate: 20MBd
- Propagation Delay tpLH / tpHL (Max): 60ns, 60ns
- Rise / Fall Time (Typ): 1.3ns, 1ns
- Voltage - Forward (Vf) (Typ): 1.5V
- Current - DC Forward (If) (Max): 8mA
- Voltage - Supply: 2.7V ~ 5.5V
- Operating Temperature: -40°C ~ 125°C
- Mounting Type: Surface Mount
- Package / Case: 8-SOIC (0.295", 7.50mm Width)
- Supplier Device Package: 8-SO
