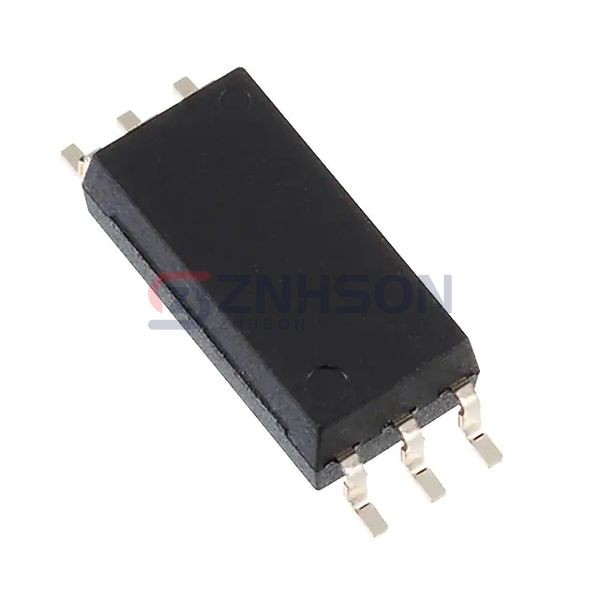

TLP2761(D4,E
Toshiba Semiconductor and Storage
Toshiba Semiconductor and Storage
HIGH SPEED LOGIC OUTPUT OPTOCOUP
$0.55
Available to order
Reference Price (USD)
125+
$0.71776
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Maximize your circuit protection with Toshiba Semiconductor and Storage TLP2761(D4,E Optoisolators - Logic Output. These isolators provide superior electrical isolation, low power dissipation, and high common-mode rejection, perfect for medical devices, test equipment, and IoT applications. Trust Toshiba Semiconductor and Storage for cutting-edge solutions. Reach out for a customized quote!
Specifications
- Product Status: Active
- Number of Channels: 1
- Inputs - Side 1/Side 2: 1/0
- Voltage - Isolation: 5000Vrms
- Common Mode Transient Immunity (Min): 20kV/µs
- Input Type: AC, DC
- Output Type: Push-Pull, Totem Pole
- Current - Output / Channel: 10 mA
- Data Rate: 15MBd
- Propagation Delay tpLH / tpHL (Max): 80ns, 80ns
- Rise / Fall Time (Typ): 3ns, 3ns
- Voltage - Forward (Vf) (Typ): 1.5V
- Current - DC Forward (If) (Max): 10mA
- Voltage - Supply: 2.7V ~ 5.5V
- Operating Temperature: -40°C ~ 125°C
- Mounting Type: Surface Mount
- Package / Case: 6-SOIC (0.295", 7.50mm Width)
- Supplier Device Package: 6-SO
