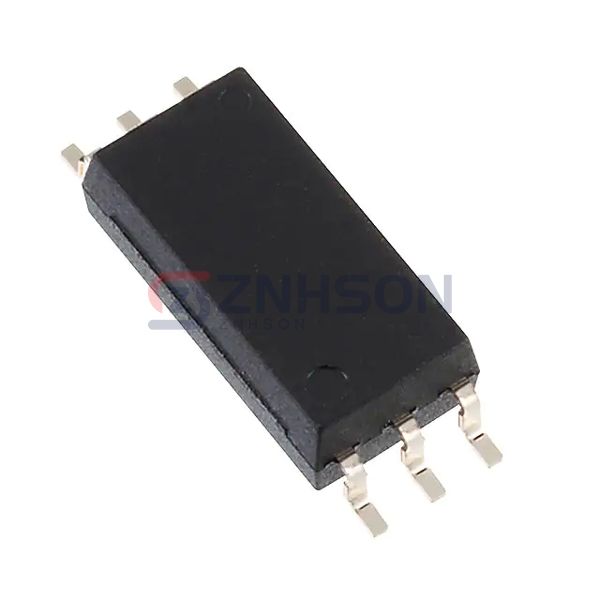

TLP2761(E
Toshiba Semiconductor and Storage
Toshiba Semiconductor and Storage
HIGH SPEED LOGIC OUTPUT OPTOCOUP
$0.55
Available to order
Reference Price (USD)
125+
$0.71776
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The Toshiba Semiconductor and Storage TLP2761(E Optoisolators - Logic Output offer reliable and efficient signal isolation for modern electronics. With features like wide voltage range, high-speed switching, and compact form factor, they are ideal for use in automotive, industrial, and consumer electronics. Elevate your designs with Toshiba Semiconductor and Storage's quality. Request more information now!
Specifications
- Product Status: Active
- Number of Channels: 1
- Inputs - Side 1/Side 2: 1/0
- Voltage - Isolation: 5000Vrms
- Common Mode Transient Immunity (Min): 20kV/µs
- Input Type: AC, DC
- Output Type: Push-Pull, Totem Pole
- Current - Output / Channel: 10 mA
- Data Rate: 15MBd
- Propagation Delay tpLH / tpHL (Max): 80ns, 80ns
- Rise / Fall Time (Typ): 3ns, 3ns
- Voltage - Forward (Vf) (Typ): 1.5V
- Current - DC Forward (If) (Max): 10mA
- Voltage - Supply: 2.7V ~ 5.5V
- Operating Temperature: -40°C ~ 125°C
- Mounting Type: Surface Mount
- Package / Case: 6-SOIC (0.295", 7.50mm Width)
- Supplier Device Package: 6-SO
