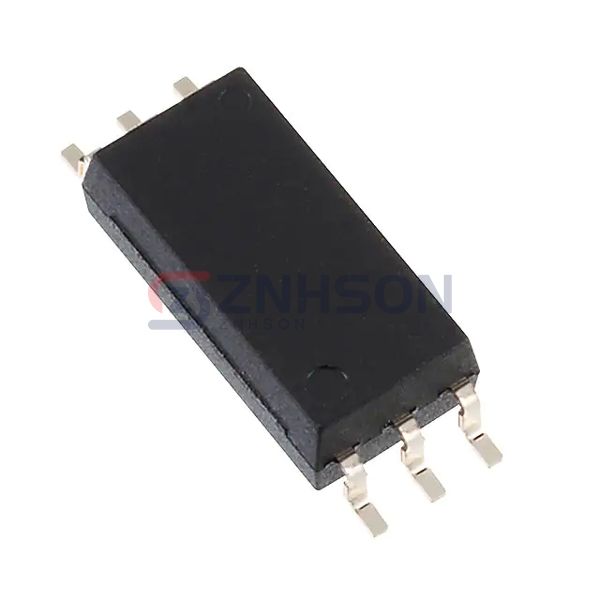

TLP2768A(TP,E
Toshiba Semiconductor and Storage
Toshiba Semiconductor and Storage
ZSOL6ICTST20M,ACTIVE,
$0.49
Available to order
Reference Price (USD)
1,500+
$0.52360
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your electronic designs with Toshiba Semiconductor and Storage TLP2768A(TP,E Optoisolators - Logic Output. These isolators deliver high-speed, reliable signal isolation with low power consumption and excellent thermal stability, ideal for applications in HVAC, lighting controls, and security systems. Trust Toshiba Semiconductor and Storage for innovative solutions. Send us your requirements today!
Specifications
- Product Status: Active
- Number of Channels: 1
- Inputs - Side 1/Side 2: 1/0
- Voltage - Isolation: 5000Vrms
- Common Mode Transient Immunity (Min): 20kV/µs
- Input Type: DC
- Output Type: Open Collector
- Current - Output / Channel: 25 mA
- Data Rate: 20MBd
- Propagation Delay tpLH / tpHL (Max): 60ns, 60ns
- Rise / Fall Time (Typ): 30ns, 30ns
- Voltage - Forward (Vf) (Typ): 1.55V
- Current - DC Forward (If) (Max): 25mA
- Voltage - Supply: 2.7V ~ 5.5V
- Operating Temperature: -40°C ~ 125°C
- Mounting Type: Surface Mount
- Package / Case: 6-SOIC (0.295", 7.50mm Width)
- Supplier Device Package: 6-SO
