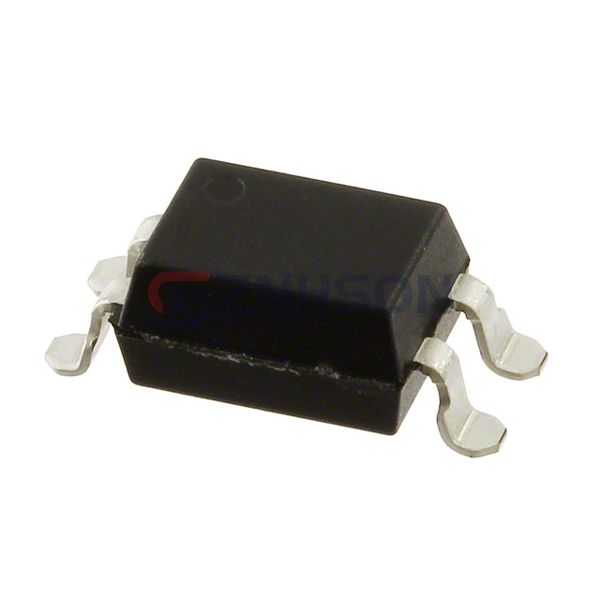

TLP785(D4YH-T6,F
Toshiba Semiconductor and Storage
Toshiba Semiconductor and Storage
X36 PB-F TRANSISTOR COUPLER VDE
$0.18
Available to order
Reference Price (USD)
4,000+
$0.19635
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Ensure optimal performance in your electronic designs with TLP785(D4YH-T6,F Optoisolators from Toshiba Semiconductor and Storage. Featuring Photovoltaic Output, these isolators are ideal for applications in automotive, IoT, and smart grid systems, offering high-speed signal transmission and robust isolation. Backed by Toshiba Semiconductor and Storage's expertise, these components are a smart investment for any project. Contact us today to discuss your requirements and receive a tailored quote!
Specifications
- Product Status: Active
- Number of Channels: 1
- Voltage - Isolation: 5000Vrms
- Current Transfer Ratio (Min): 75% @ 5mA
- Current Transfer Ratio (Max): 150% @ 5mA
- Turn On / Turn Off Time (Typ): 3µs, 3µs
- Rise / Fall Time (Typ): 2µs, 3µs
- Input Type: DC
- Output Type: Transistor
- Voltage - Output (Max): 80V
- Current - Output / Channel: 50mA
- Voltage - Forward (Vf) (Typ): 1.15V
- Current - DC Forward (If) (Max): 60 mA
- Vce Saturation (Max): 400mV
- Operating Temperature: -55°C ~ 110°C
- Mounting Type: Surface Mount
- Package / Case: 4-SMD, Gull Wing
- Supplier Device Package: 4-SMD
