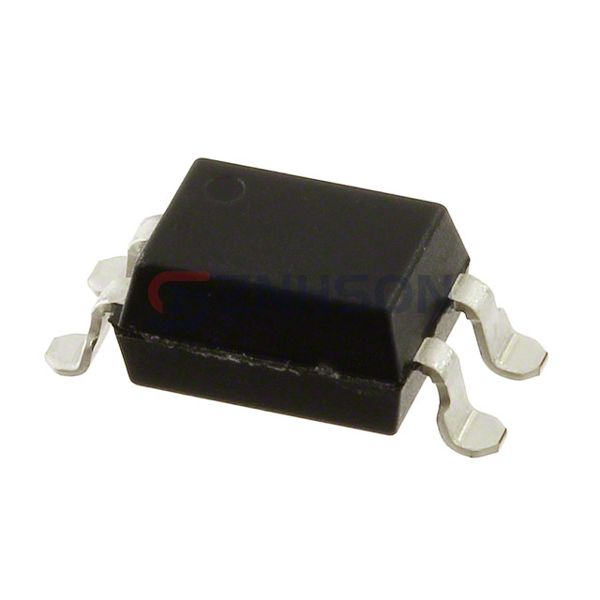

TLP785(GB-LF6,F
Toshiba Semiconductor and Storage
Toshiba Semiconductor and Storage
X36 PB-F PHOTOCOUPLER SURFACE MO
$0.22
Available to order
Reference Price (USD)
100+
$0.30800
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover high-quality TLP785(GB-LF6,F Optoisolators with Photovoltaic Output from Toshiba Semiconductor and Storage, designed for reliable signal isolation in various electronic applications. These optoisolators feature excellent noise immunity, high voltage isolation, and stable performance, making them ideal for industrial automation, medical equipment, and communication systems. Whether you need to protect sensitive circuits or ensure signal integrity, our optoisolators deliver unmatched reliability. Contact us today for a quote and find the perfect solution for your needs!
Specifications
- Product Status: Active
- Number of Channels: 1
- Voltage - Isolation: 5000Vrms
- Current Transfer Ratio (Min): 100% @ 5mA
- Current Transfer Ratio (Max): 600% @ 5mA
- Turn On / Turn Off Time (Typ): 3µs, 3µs
- Rise / Fall Time (Typ): 2µs, 3µs
- Input Type: DC
- Output Type: Transistor
- Voltage - Output (Max): 80V
- Current - Output / Channel: 50mA
- Voltage - Forward (Vf) (Typ): 1.15V
- Current - DC Forward (If) (Max): 60 mA
- Vce Saturation (Max): 400mV
- Operating Temperature: -55°C ~ 110°C
- Mounting Type: Surface Mount
- Package / Case: 4-SMD, Gull Wing
- Supplier Device Package: 4-SMD
