TLW-139-06-T-S
Samtec Inc.
Samtec Inc.
CONN HEADER VERT 39POS 2.54MM
$4.65
Available to order
Reference Price (USD)
1+
$4.30000
10+
$4.12800
25+
$3.78360
50+
$3.61180
100+
$3.43980
250+
$3.00984
500+
$2.92384
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

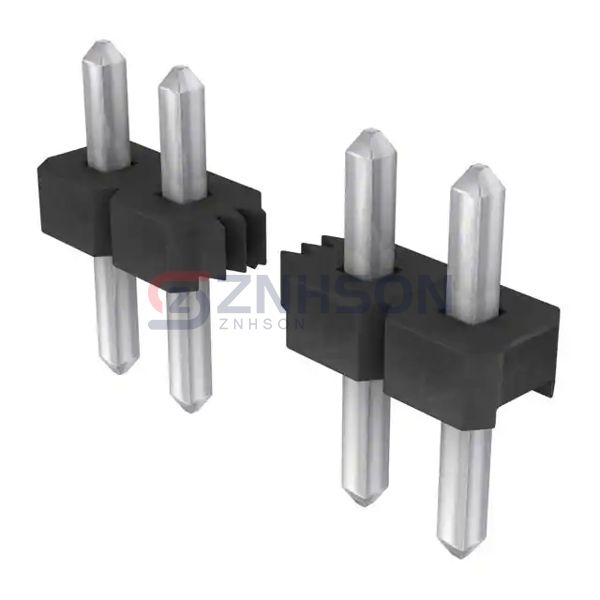

The TLW-139-06-T-S Samtec Inc. Rectangular Connectors - Headers, Male Pins deliver precision and reliability for all your connectivity needs. Featuring gold-plated contacts, high-density layouts, and rugged housings, they excel in harsh environments. Perfect for military, automotive, and renewable energy applications. Let us help you find the right connector inquire now!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 39
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.105" (2.67mm)
- Contact Length - Post: 0.135" (3.43mm)
- Overall Contact Length: 0.300" (7.62mm)
- Insulation Height: 0.060" (1.52mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: -
- Operating Temperature: -55°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: -
- Insulation Color: Black
- Current Rating (Amps): 5.2A per Contact
- Voltage Rating: -
