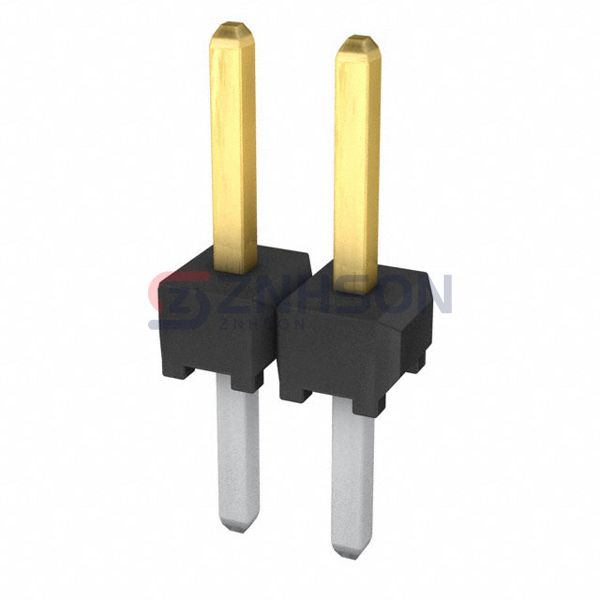

TMM-102-01-F-S
Samtec Inc.
Samtec Inc.
2MM TERMINAL STRIP
$0.44
Available to order
Reference Price (USD)
1+
$0.29000
10+
$0.27700
100+
$0.19360
500+
$0.16590
1,000+
$0.13825
5,000+
$0.11850
10,000+
$0.11060
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Boost your project's efficiency with TMM-102-01-F-S Samtec Inc. Rectangular Connectors - Headers, Male Pins. These connectors ensure low insertion force, high mating cycles, and EMI shielding for superior performance. Ideal for medical equipment, robotics, and telecommunications. Need a quote? Contact us today and let s discuss your requirements!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 2
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.126" (3.20mm)
- Contact Length - Post: 0.138" (3.50mm)
- Overall Contact Length: 0.323" (8.20mm)
- Insulation Height: 0.059" (1.50mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 3.00µin (0.076µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: -
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: -
- Insulation Color: Black
- Current Rating (Amps): 3.2A per Contact
- Voltage Rating: -
