TMM-107-01-S-S-SM
Samtec Inc.
Samtec Inc.
CONN HEADER SMD 7POS 2MM
$2.86
Available to order
Reference Price (USD)
1+
$2.86000
500+
$2.8314
1000+
$2.8028
1500+
$2.7742
2000+
$2.7456
2500+
$2.717
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The TMM-107-01-S-S-SM Samtec Inc. Rectangular Connectors - Headers, Male Pins are the perfect choice for high-performance electronic connections. Designed for durability and efficiency, they support a wide range of applications, from automotive to IoT devices. Experience the Samtec Inc. difference today. Contact us for more details and a customized solution!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 7
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.126" (3.20mm)
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.059" (1.50mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: -
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3.2A per Contact
- Voltage Rating: -
Related Products
Samtec Inc.
TMM-112-06-LM-D-SM-A-TR
Samtec Inc.
TSM-112-01-S-SV
Samtec Inc.
FTSH-107-04-L-DH-C
Samtec Inc.
EHT-108-01-S-D-SM-LC-TR
Würth Elektronik
66101011622
Hirose Electric Co Ltd
DF3E-5P-2H(54)
Amphenol ICC (FCI)
86130105014345E1LF
Mill-Max Manufacturing Corp.
852-90-044-10-001000
Samtec Inc.

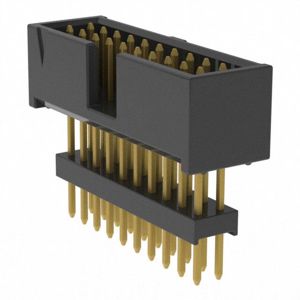

ZSS-110-03-G-D-662
