TMM-108-06-F-D-SM-A
Samtec Inc.
Samtec Inc.
2MM TERMINAL STRIP
$3.81
Available to order
Reference Price (USD)
1+
$2.54000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Boost your project's efficiency with TMM-108-06-F-D-SM-A Samtec Inc. Rectangular Connectors - Headers, Male Pins. These connectors ensure low insertion force, high mating cycles, and EMI shielding for superior performance. Ideal for medical equipment, robotics, and telecommunications. Need a quote? Contact us today and let s discuss your requirements!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 16
- Number of Rows: 2
- Row Spacing - Mating: 0.079" (2.00mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.168" (4.27mm)
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.059" (1.50mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 3.00µin (0.076µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: Board Guide
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3.2A per Contact
- Voltage Rating: -
Related Products
Mill-Max Manufacturing Corp.
435-10-246-00-160000
NorComp Inc.
26644401RP2
Sullins Connector Solutions
NRPN222PAEN-RC
Samtec Inc.
TSM-107-03-T-DH
Samtec Inc.
TSM-111-01-TM-DV-A-P-TR
Molex

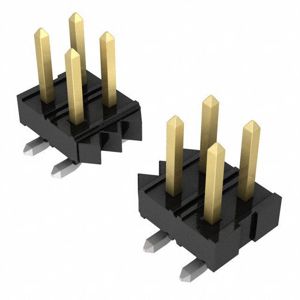

0877591474
Sullins Connector Solutions

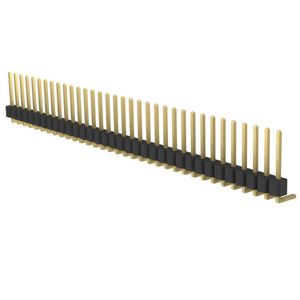

PRPC034SGAN-M71RC
Samtec Inc.
TSW-133-17-G-S
JST Sales America Inc.

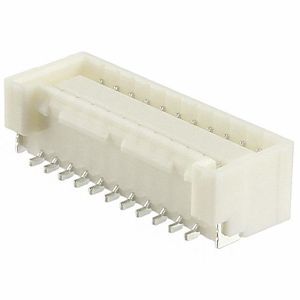

BM22B-ZPDSS-TF(LF)(SN)
