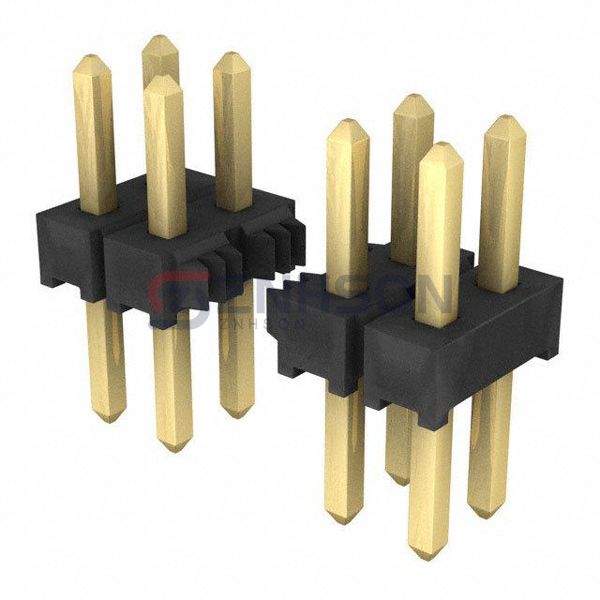

TMM-127-04-G-D
Samtec Inc.
Samtec Inc.
2MM TERMINAL STRIP
$10.92
Available to order
Reference Price (USD)
1+
$6.50000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The TMM-127-04-G-D Samtec Inc. Rectangular Connectors - Headers, Male Pins offer unmatched reliability for your electronic assembly needs. With features like corrosion resistance, high-temperature tolerance, and easy mating, these connectors are suited for aerospace, medical devices, and more. Trust Samtec Inc. for top-tier connectivity solutions. Interested? Get in touch today for pricing and availability!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 54
- Number of Rows: 2
- Row Spacing - Mating: 0.079" (2.00mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.075" (1.90mm)
- Contact Length - Post: 0.090" (2.29mm)
- Overall Contact Length: 0.224" (5.69mm)
- Insulation Height: 0.059" (1.50mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 20.0µin (0.51µm)
- Contact Finish - Post: Gold
- Contact Material: Phosphor Bronze
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: -
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: -
- Insulation Color: Black
- Current Rating (Amps): 3.2A per Contact
- Voltage Rating: -
Related Products
Molex
0705550071
Amphenol ICC (FCI)
77315-102-04LF
Samtec Inc.
TST-112-01-L-D
Samtec Inc.
TMM-143-01-T-D
Würth Elektronik
649004221732
Sullins Connector Solutions
PBC30DABN
Samtec Inc.
HTST-110-01-F-DV
Samtec Inc.
ZSS-125-03-G-D-699
Samtec Inc.

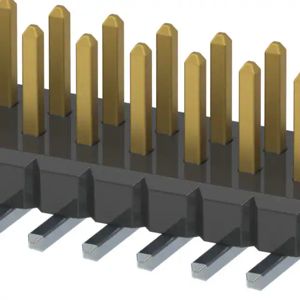

FTM-111-02-F-DV-P
