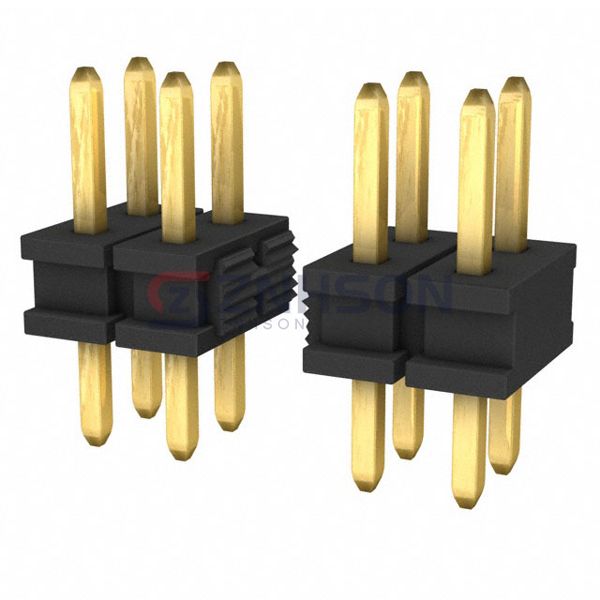

TMMH-150-01-G-D
Samtec Inc.
Samtec Inc.
CONN HEADER VERT 100POS 2MM
$16.60
Available to order
Reference Price (USD)
1+
$10.40000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The TMMH-150-01-G-D Samtec Inc. Rectangular Connectors - Headers, Male Pins deliver precision and reliability for all your connectivity needs. Featuring gold-plated contacts, high-density layouts, and rugged housings, they excel in harsh environments. Perfect for military, automotive, and renewable energy applications. Let us help you find the right connector inquire now!
Specifications
- Product Status: Active
- Connector Type: Header, Cuttable
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 100
- Number of Rows: 2
- Row Spacing - Mating: 0.079" (2.00mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.126" (3.20mm)
- Contact Length - Post: 0.097" (2.47mm)
- Overall Contact Length: 0.302" (7.67mm)
- Insulation Height: 0.079" (2.00mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 20.0µin (0.51µm)
- Contact Finish - Post: Gold
- Contact Material: Phosphor Bronze
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: -
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: -
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
Related Products
HARTING
09185105323
Amphenol Sine Systems Corp
ATF13-08PA-BM31
TE Connectivity AMP Connectors
2-1586544-0
Samtec Inc.
FTS-116-01-L-D
Amphenol ICC (FCI)
77311-802-14LF
Samtec Inc.
TMM-105-05-F-D-SM-A
Samtec Inc.

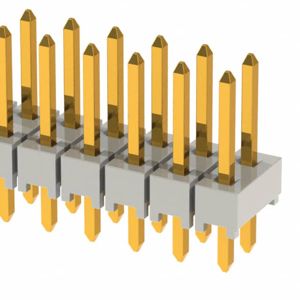

HTSW-123-07-G-D
Samtec Inc.

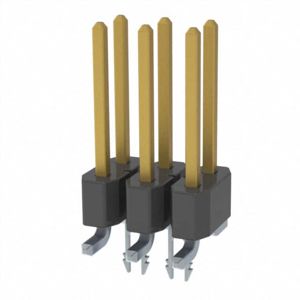

TSM-103-02-L-DV-LC
