TMS-120-01-L-S
Samtec Inc.
Samtec Inc.
.050" (1.27MM) MICRO HEADER
$4.41
Available to order
Reference Price (USD)
1+
$2.53000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Maximize your device's potential with TMS-120-01-L-S Samtec Inc. Rectangular Connectors - Headers, Male Pins. These connectors provide excellent electrical performance, secure locking mechanisms, and space-saving designs. Suitable for industrial machinery, consumer electronics, and more. Ready to order? Send us your inquiry and we'll respond swiftly!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.050" (1.27mm)
- Number of Positions: 20
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.230" (5.84mm)
- Contact Length - Post: 0.120" (3.05mm)
- Overall Contact Length: 0.450" (11.43mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: -
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 5A per Contact
- Voltage Rating: -
Related Products
Amphenol ICC (FCI)
54202-S0813ALF
Amphenol ICC (FCI)
77313-802-50LF
Sullins Connector Solutions
PEC35SAHN
Molex
0901310152
Molex
53014-1010
Samtec Inc.
TSM-126-01-S-DH-A
Samtec Inc.

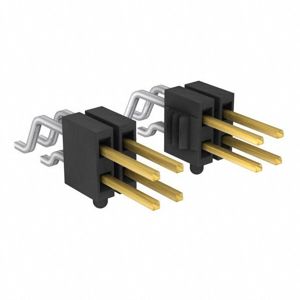

FTSH-109-01-L-DH-A

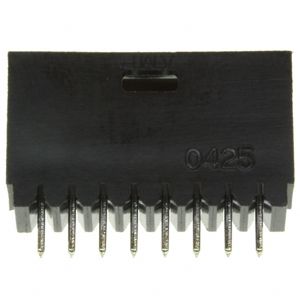

TE Connectivity AMP Connectors
103080-6
Samtec Inc.

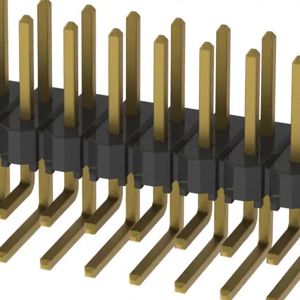

HTSW-112-08-G-D-RA
