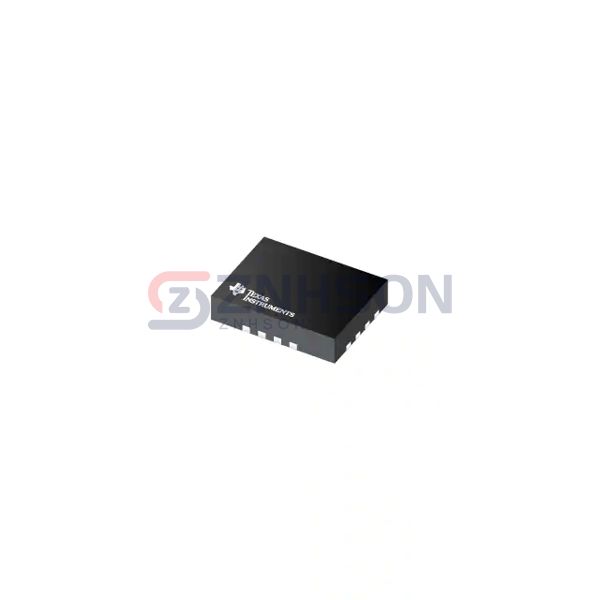

TMUX1109RSVR
Texas Instruments
Texas Instruments
IC SWITCH DUAL 16UQFN
$3.20
Available to order
Reference Price (USD)
3,000+
$1.61063
6,000+
$1.55008
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The Texas Instruments TMUX1109RSVR Analog Switches, Multiplexers, and Demultiplexers are the go-to choice for engineers seeking reliable signal routing solutions. With features like low crosstalk and high isolation, these ICs are perfect for audio processing, sensor arrays, and more. Elevate your application with our industry-leading technology. Contact us today to discuss your requirements and discover how Texas Instruments can support your innovation.
Specifications
- Product Status: Active
- Switch Circuit: -
- Multiplexer/Demultiplexer Circuit: 4:1
- Number of Circuits: 2
- On-State Resistance (Max): 4Ohm
- Channel-to-Channel Matching (ΔRon): 180mOhm
- Voltage - Supply, Single (V+): -
- Voltage - Supply, Dual (V±): ±2.75V
- Switch Time (Ton, Toff) (Max): 12ns, 6ns (Typ)
- -3db Bandwidth: 135MHz
- Charge Injection: -1pC
- Channel Capacitance (CS(off), CD(off)): 7.5pF, 32pF
- Current - Leakage (IS(off)) (Max): 80pA
- Crosstalk: -90dB ~ -80dB @ 1MHz ~ 10MHz
- Operating Temperature: -40°C ~ 125°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 16-UFQFN
- Supplier Device Package: 16-UQFN (2.6x1.8)
Related Products
Analog Devices Inc./Maxim Integrated
MAX305CSE+T
Runic Technology

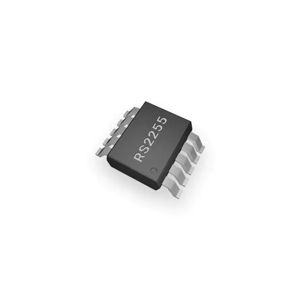

RS2255XN
Harris Corporation
HI3-0509A-5
Texas Instruments

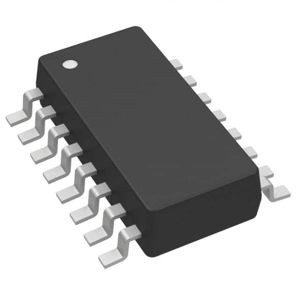

TMUX1309DYYR
Analog Devices Inc.

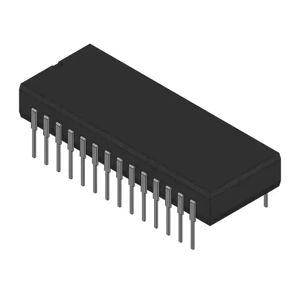

ADG507AKN/+
