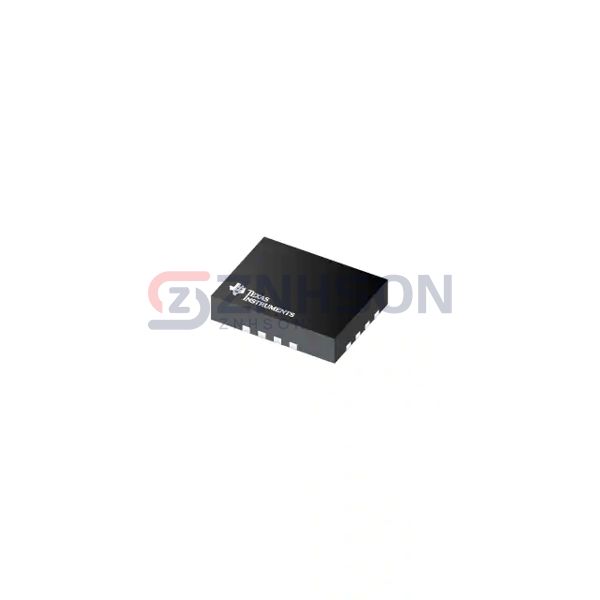

TMUX1574RSVR
Texas Instruments
Texas Instruments
IC SWITCH SPDT QUAD 16UQFN
$0.96
Available to order
Reference Price (USD)
3,000+
$0.49140
6,000+
$0.46683
15,000+
$0.44928
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The Texas Instruments TMUX1574RSVR series brings you high-performance Analog Switches, Multiplexers, and Demultiplexers for all your interface needs. Perfect for data loggers, medical imaging, and communication systems, these ICs ensure reliable operation under demanding conditions. Benefit from Texas Instruments's expertise in signal integrity and power efficiency. Reach out now to learn more and place your order with confidence.
Specifications
- Product Status: Active
- Switch Circuit: SPDT
- Multiplexer/Demultiplexer Circuit: 2:1
- Number of Circuits: 4
- On-State Resistance (Max): 4.5Ohm
- Channel-to-Channel Matching (ΔRon): 70mOhm
- Voltage - Supply, Single (V+): -
- Voltage - Supply, Dual (V±): -
- Switch Time (Ton, Toff) (Max): 35µs, 95ns
- -3db Bandwidth: 2GHz
- Charge Injection: 3.5pC
- Channel Capacitance (CS(off), CD(off)): 3.5pF, 3.5pF
- Current - Leakage (IS(off)) (Max): 100nA
- Crosstalk: -90dB @ 100kHz
- Operating Temperature: -40°C ~ 125°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 16-UFQFN
- Supplier Device Package: 16-UQFN (2.6x1.8)
