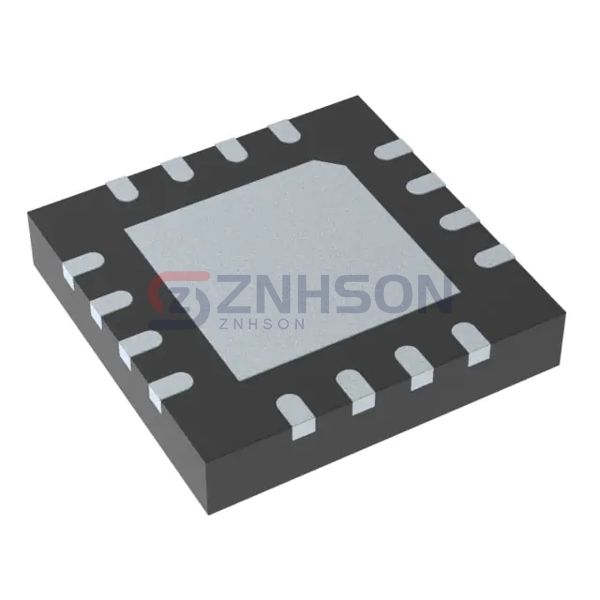

TMUX6209RUMR
Texas Instruments
Texas Instruments
IC MULTIPLEXER
$3.96
Available to order
Reference Price (USD)
1+
$3.95680
500+
$3.917232
1000+
$3.877664
1500+
$3.838096
2000+
$3.798528
2500+
$3.75896
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize signal routing with Texas Instruments TMUX6209RUMR Interface ICs, featuring state-of-the-art Analog Switches, Multiplexers, and Demultiplexers. These components are built for precision, offering low leakage current and high-speed operation in automotive infotainment, networking, and more. Choose Texas Instruments for components that exceed expectations. Submit your inquiry today and let us provide the perfect solution for your technical challenges.
Specifications
- Product Status: Active
- Switch Circuit: 4PST
- Multiplexer/Demultiplexer Circuit: 4:1
- Number of Circuits: 2
- On-State Resistance (Max): 6.2Ohm
- Channel-to-Channel Matching (ΔRon): 200mOhm
- Voltage - Supply, Single (V+): 4.5V ~ 36V, ±4.5V ~ 18V
- Voltage - Supply, Dual (V±): 4.5V ~ 36V, ±4.5V ~ 18V
- Switch Time (Ton, Toff) (Max): 200ns, 290ns
- -3db Bandwidth: 50MHz
- Charge Injection: 2pC
- Channel Capacitance (CS(off), CD(off)): 15pF, 68pF
- Current - Leakage (IS(off)) (Max): 400pA
- Crosstalk: -65dB @ 1MHz
- Operating Temperature: -40°C ~ 125°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 16-WQFN Exposed Pad
- Supplier Device Package: 16-WQFN (4x4)
Related Products
Analog Devices Inc./Maxim Integrated
MAX4712CUE+T
Analog Devices Inc.
ADGS1408BCPZ-RL7
ADSANTEC
ANST2011-KMA
Diodes Incorporated
PI3USB4002A
onsemi
NLAS44599DTG
Harris Corporation
DG182BA
Analog Devices Inc.

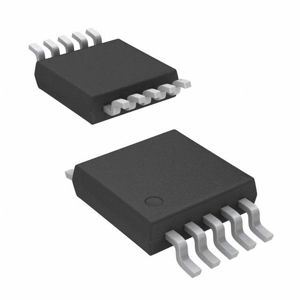

ADG1221BRMZ-REEL7
Analog Devices Inc./Maxim Integrated

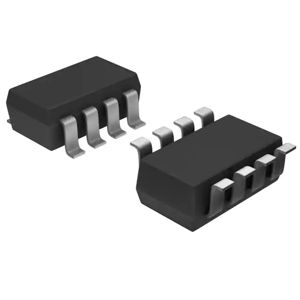

MAX4741EKA+T
