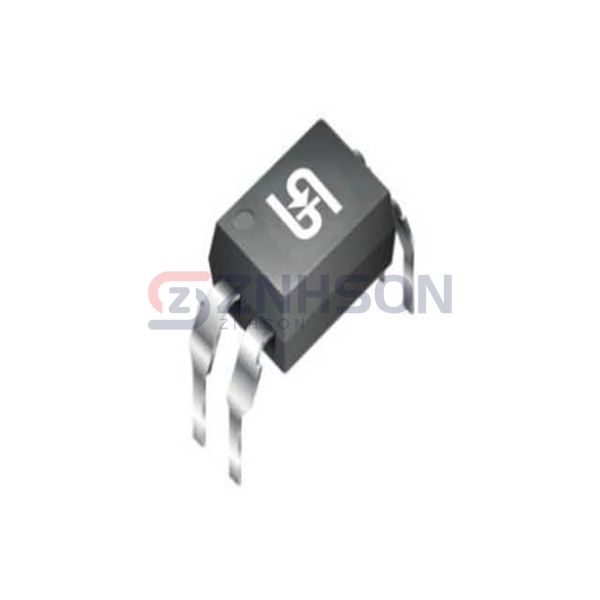

TPC816D C9G
Taiwan Semiconductor Corporation
Taiwan Semiconductor Corporation
OPTOISO 5KV TRANS 4DIP
$0.39
Available to order
Reference Price (USD)
1+
$0.53000
10+
$0.38100
25+
$0.29200
100+
$0.19040
250+
$0.13960
500+
$0.11844
1,000+
$0.09729
2,500+
$0.08460
5,000+
$0.07614
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance circuit safety with TPC816D C9G Optoisolators from Taiwan Semiconductor Corporation, featuring Photovoltaic Output for efficient signal transfer. Ideal for use in renewable energy systems, automotive electronics, and industrial machinery, these isolators provide excellent electrical isolation and noise reduction. Their compact design and high reliability make them a top choice for engineers worldwide. Ready to secure your components? Request a quote today and experience the Taiwan Semiconductor Corporation difference!
Specifications
- Product Status: Obsolete
- Number of Channels: 1
- Voltage - Isolation: 5000Vrms
- Current Transfer Ratio (Min): 300% @ 5mA
- Current Transfer Ratio (Max): 600% @ 5mA
- Turn On / Turn Off Time (Typ): -
- Rise / Fall Time (Typ): 4µs, 3µs
- Input Type: DC
- Output Type: Transistor
- Voltage - Output (Max): 70V
- Current - Output / Channel: 50mA
- Voltage - Forward (Vf) (Typ): 1.2V
- Current - DC Forward (If) (Max): 50 mA
- Vce Saturation (Max): 200mV
- Operating Temperature: -30°C ~ 100°C
- Mounting Type: Through Hole
- Package / Case: 4-DIP (0.400", 10.16mm)
- Supplier Device Package: 4-DIP
