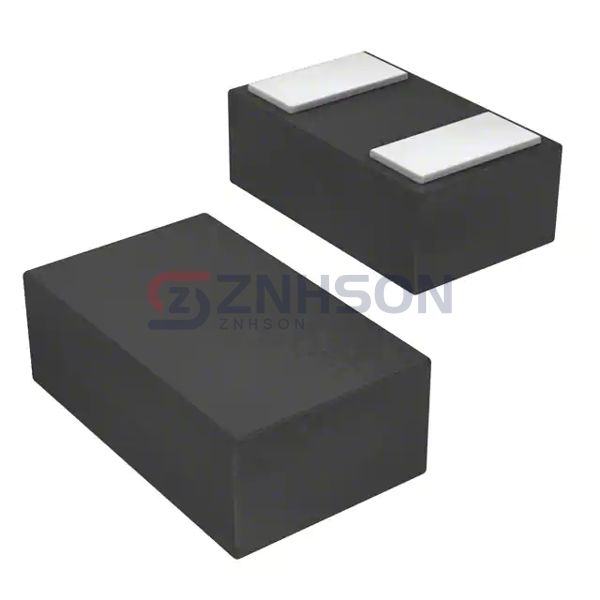

TPD1E04U04DPLR
Texas Instruments
Texas Instruments
TVS DIODE 3.6VWM 8.9VC 2X2SON
$0.42
Available to order
Reference Price (USD)
15,000+
$0.09435
30,000+
$0.08700
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your circuit protection with Texas Instruments's TPD1E04U04DPLR TVS Diodes, engineered to handle sudden voltage surges effectively. Perfect for telecommunications, power supplies, and data lines, these diodes offer excellent ESD protection and durability. Key features include high power dissipation, compact size, and reliable performance under extreme conditions. Trust Texas Instruments for top-tier circuit protection solutions. Ready to secure your electronics? Submit an inquiry now!
Specifications
- Product Status: Active
- Type: Steering (Rail to Rail)
- Unidirectional Channels: 1
- Bidirectional Channels: -
- Voltage - Reverse Standoff (Typ): 3.6V (Max)
- Voltage - Breakdown (Min): 4.5V
- Voltage - Clamping (Max) @ Ipp: 8.9V
- Current - Peak Pulse (10/1000µs): 2.5A (8/20µs)
- Power - Peak Pulse: 16W
- Power Line Protection: Yes
- Applications: HDMI
- Capacitance @ Frequency: 0.5pF @ 1MHz
- Operating Temperature: -40°C ~ 125°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 0201 (0603 Metric)
- Supplier Device Package: 2-X2SON (0.6x0.3)
