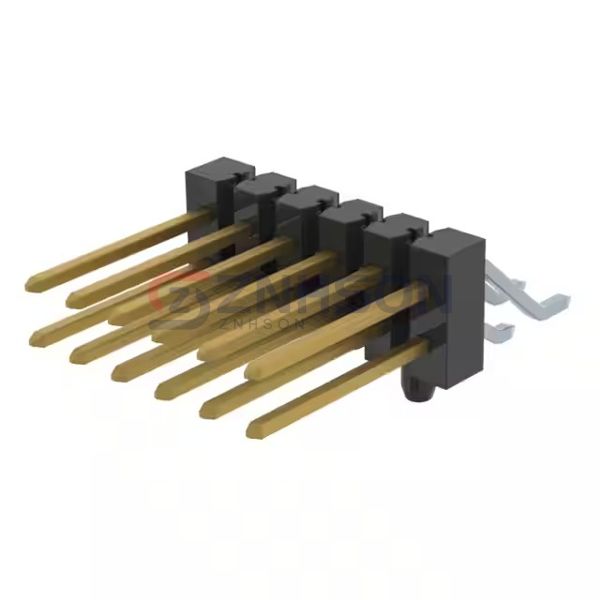

TSM-106-03-L-DH-A
Samtec Inc.
Samtec Inc.
CONN HEADER SMD R/A 12POS 2.54MM
$3.46
Available to order
Reference Price (USD)
1+
$2.32000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The TSM-106-03-L-DH-A Samtec Inc. Rectangular Connectors - Headers, Male Pins are designed for excellence in every connection. With features like polarized housings, vibration resistance, and RoHS compliance, they meet the highest industry standards. Suitable for LED lighting, HVAC systems, and more. Get yours today submit an inquiry now!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 12
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Surface Mount, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.420" (10.67mm)
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.240" (6.10mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: Board Guide
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
Related Products
Samtec Inc.
TSM-105-05-T-DV-A
Samtec Inc.
MMT-125-01-T-DH-K-TR
Samtec Inc.
TSM-104-03-L-SH-P
Samtec Inc.
EHT-105-01-L-D-SM-K-TR
Amphenol ICC (Commercial Products)
G88MPB05002C1EU
Harwin Inc.
M80-8280645
TE Connectivity AMP Connectors

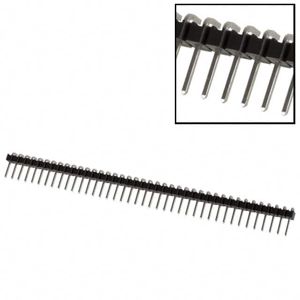

4-103329-0
Samtec Inc.

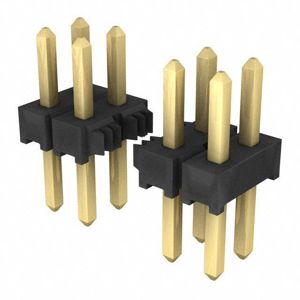

TMM-112-04-G-D
