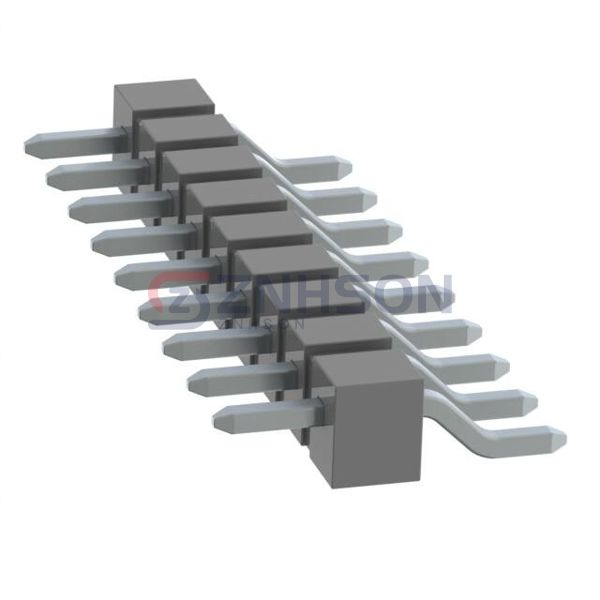

TSM-109-04-T-SH-K-TR
Samtec Inc.
Samtec Inc.
CONN HEADER SMD R/A 9POS 2.54MM
$1.16
Available to order
Reference Price (USD)
125+
$1.05600
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The TSM-109-04-T-SH-K-TR Samtec Inc. Rectangular Connectors - Headers, Male Pins deliver precision and reliability for all your connectivity needs. Featuring gold-plated contacts, high-density layouts, and rugged housings, they excel in harsh environments. Perfect for military, automotive, and renewable energy applications. Let us help you find the right connector inquire now!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 9
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Surface Mount, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.120" (3.05mm)
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.120" (3.05mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: Pick and Place
- Operating Temperature: -55°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
Related Products
TE Connectivity AMP Connectors
6-103672-1
TE Connectivity AMP Connectors
536272-4
Amphenol ICC (FCI)
77311-102-05LF
Amphenol ICC (FCI)
10056844-116LF
Sullins Connector Solutions
PEC05SFCN
TE Connectivity AMP Connectors
828801-5
Samtec Inc.
TFM-105-22-L-D-A-K-TR
Preci-Dip

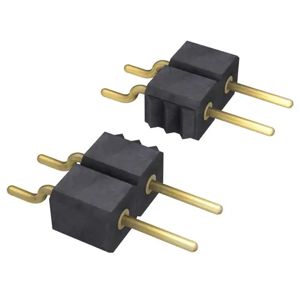

800-10-052-40-001101
Amphenol ICC (FCI)

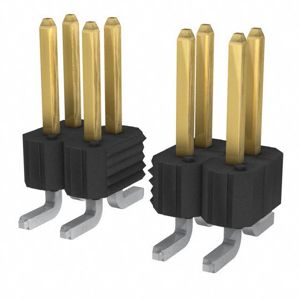

54202-G0810ALF
