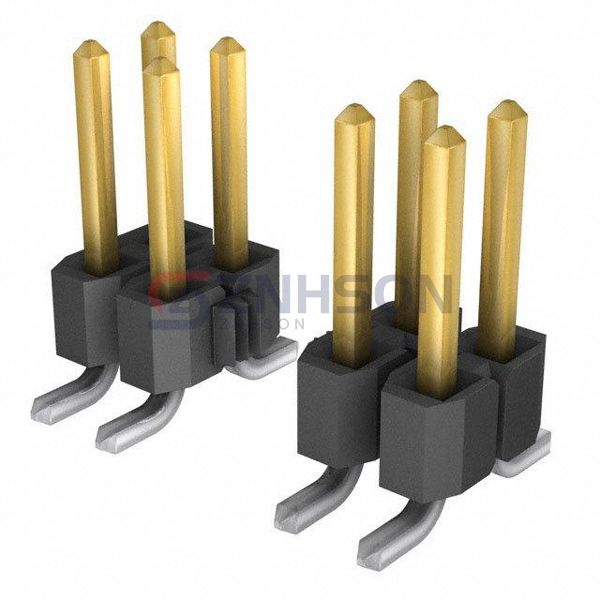

TSM-113-01-L-DV-P
Samtec Inc.
Samtec Inc.
CONN HEADER SMD 26POS 2.54MM
$5.14
Available to order
Reference Price (USD)
1+
$5.14000
500+
$5.0886
1000+
$5.0372
1500+
$4.9858
2000+
$4.9344
2500+
$4.883
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Boost your project's efficiency with TSM-113-01-L-DV-P Samtec Inc. Rectangular Connectors - Headers, Male Pins. These connectors ensure low insertion force, high mating cycles, and EMI shielding for superior performance. Ideal for medical equipment, robotics, and telecommunications. Need a quote? Contact us today and let s discuss your requirements!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 26
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.230" (5.84mm)
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: Pick and Place
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
Related Products
TE Connectivity AMP Connectors
2842150-5
Amphenol ICC (FCI)
95293-801-17LF
Amphenol ICC (FCI)
67997-206HLF
Samtec Inc.
ZSS-125-05-L-D-920
TE Connectivity AMP Connectors
2-1969543-6
Samtec Inc.
TMM-108-06-F-D
Samtec Inc.
TFC-150-02-L-D-A-K
TE Connectivity AMP Connectors
3-1123723-8
Molex

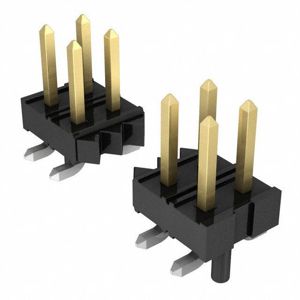

0877594450
