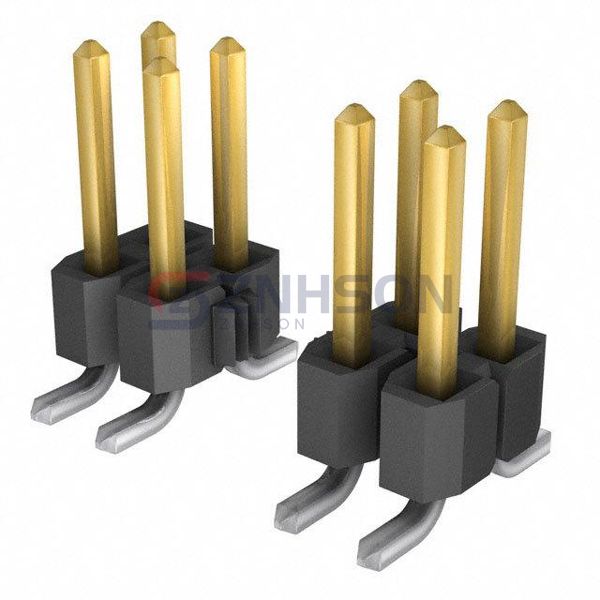

TSM-113-01-LM-DV
Samtec Inc.
Samtec Inc.
CONN HEADER SMD 26POS 2.54MM
$4.59
Available to order
Reference Price (USD)
1+
$2.63000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The TSM-113-01-LM-DV Samtec Inc. Rectangular Connectors - Headers, Male Pins deliver precision and reliability for all your connectivity needs. Featuring gold-plated contacts, high-density layouts, and rugged housings, they excel in harsh environments. Perfect for military, automotive, and renewable energy applications. Let us help you find the right connector inquire now!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 26
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.230" (5.84mm)
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: -
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
Related Products
Sullins Connector Solutions
PBC24SAFN
Samtec Inc.
HTSW-112-07-T-D-LL
TE Connectivity AMP Connectors
5-1775443-2
Samtec Inc.
EHF-105-01-S-D-SM-K-TR
Samtec Inc.
TSM-134-02-L-SH
Samtec Inc.
HTSW-109-08-H-S
TE Connectivity AMP Connectors
316370-6
Amphenol ICC (FCI)

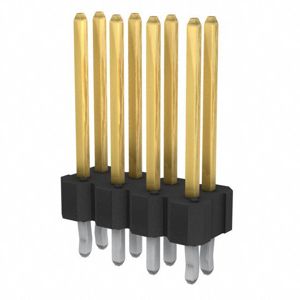

77313-185R08LF
Samtec Inc.

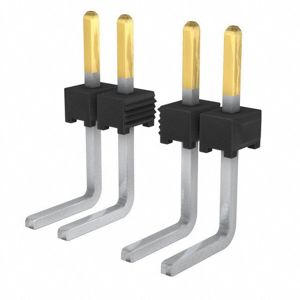

TMM-115-01-F-S-RA
