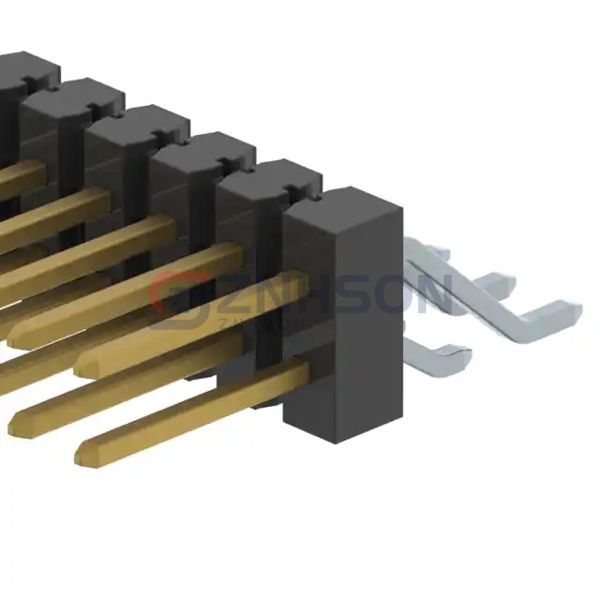

TSM-150-02-L-DH
Samtec Inc.
Samtec Inc.
CONN HEADER SMD R/A 100P 2.54MM
$18.08
Available to order
Reference Price (USD)
1+
$11.32000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Boost your project's efficiency with TSM-150-02-L-DH Samtec Inc. Rectangular Connectors - Headers, Male Pins. These connectors ensure low insertion force, high mating cycles, and EMI shielding for superior performance. Ideal for medical equipment, robotics, and telecommunications. Need a quote? Contact us today and let s discuss your requirements!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 100
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Surface Mount, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.320" (8.13mm)
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.240" (6.10mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: -
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
Related Products
Harwin Inc.
G125-MS12605L0P
Samtec Inc.
TMM-124-01-S-Q-RA
Samtec Inc.
TMM-107-01-L-D-SM-A-P-TR
Preci-Dip
350-80-155-00-024101
Mill-Max Manufacturing Corp.
399-10-151-10-009000
Samtec Inc.
HTSW-106-08-T-D-LA
TE Connectivity AMP Connectors
2-1445091-9
Samtec Inc.
TSM-107-01-S-DV-LC-TR
TE Connectivity AMP Connectors

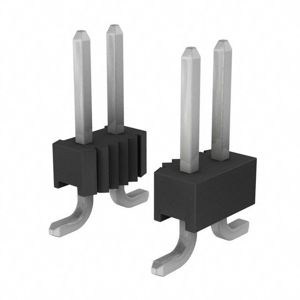

146134-4
