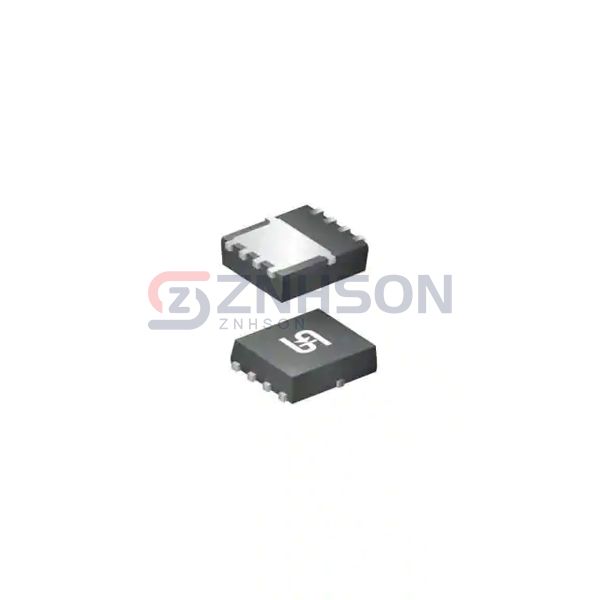

TSM070NH04CV RGG
Taiwan Semiconductor Corporation
Taiwan Semiconductor Corporation
40V, 54A, SINGLE N-CHANNEL POWER
$2.36
Available to order
Reference Price (USD)
1+
$2.36000
500+
$2.3364
1000+
$2.3128
1500+
$2.2892
2000+
$2.2656
2500+
$2.242
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your circuit performance with TSM070NH04CV RGG, a premium Transistors - FETs, MOSFETs - Single from Taiwan Semiconductor Corporation. As part of the Discrete Semiconductor Products lineup, this MOSFET excels in delivering high-speed switching and low power consumption. Its advanced design reduces heat generation and improves efficiency, suitable for power supplies, motor controls, and LED lighting. Trust TSM070NH04CV RGG for consistent quality and long-lasting performance. For bulk orders or custom specifications, reach out to our sales team today!
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 40 V
- Current - Continuous Drain (Id) @ 25°C: 14A (Ta), 54A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 7V, 10V
- Rds On (Max) @ Id, Vgs: 7mOhm @ 27A, 10V
- Vgs(th) (Max) @ Id: 3.6V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 21 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 1233 pF @ 25 V
- FET Feature: -
- Power Dissipation (Max): 36W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 8-PDFN (3.1x3.1)
- Package / Case: 8-PowerWDFN
