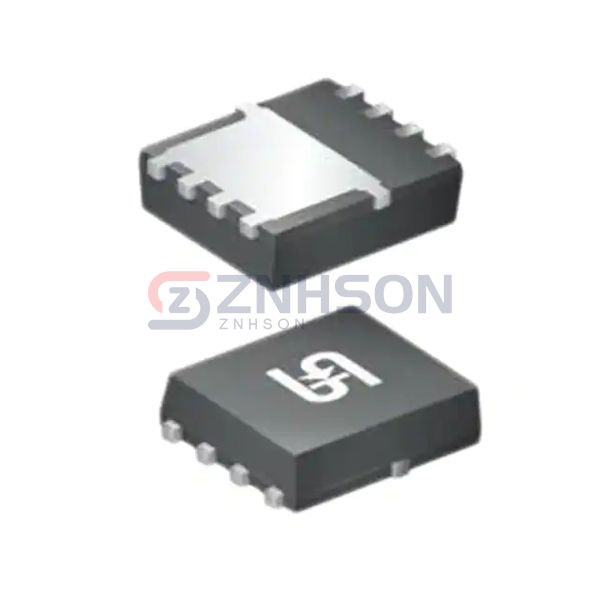

TSM085N03PQ33 RGG
Taiwan Semiconductor Corporation
Taiwan Semiconductor Corporation
MOSFET N-CH 30V 52A 8PDFN
$1.54
Available to order
Reference Price (USD)
5,000+
$0.18430
10,000+
$0.17794
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover TSM085N03PQ33 RGG, a versatile Transistors - FETs, MOSFETs - Single solution from Taiwan Semiconductor Corporation, a trusted name in Discrete Semiconductor Products. This MOSFET combines high power density with low on-resistance, perfect for compact and energy-efficient designs. Applications include solar inverters, electric vehicles, and wearable technology. Interested in this innovative component? Send us your inquiry now for more information!
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 30 V
- Current - Continuous Drain (Id) @ 25°C: 52A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Rds On (Max) @ Id, Vgs: 8.5mOhm @ 13A, 10V
- Vgs(th) (Max) @ Id: 2.5V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 14.3 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 817 pF @ 15 V
- FET Feature: -
- Power Dissipation (Max): 37W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 8-PDFN (3.1x3.1)
- Package / Case: 8-PowerWDFN
