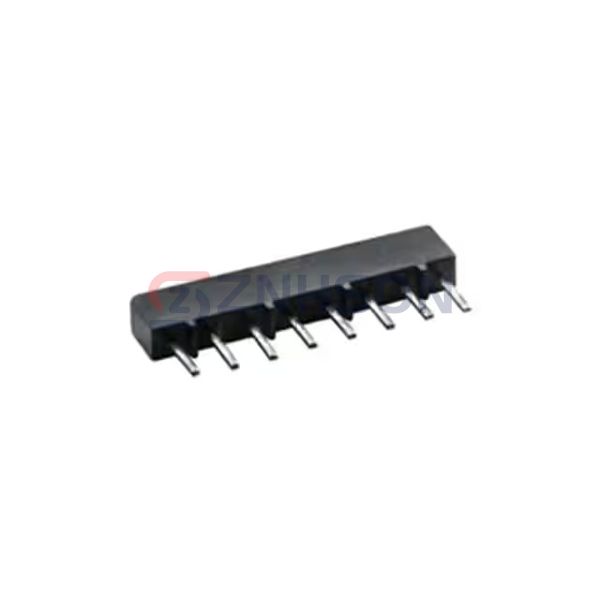

TSPS803R1003BUF
Vishay Dale Thin Film
Vishay Dale Thin Film
THIN FILM RES THROUGH HOLE SINGL
$6.93
Available to order
Reference Price (USD)
1+
$6.93000
500+
$6.8607
1000+
$6.7914
1500+
$6.7221
2000+
$6.6528
2500+
$6.5835
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Solve complex impedance matching challenges with Vishay Dale Thin Film's TSPS803R1003BUF resistor arrays. These networks provide: Matched parasitics (<0.5pF) 50 /75 RF options Custom termination schemes. Essential for high-speed digital systems (DDR5 memory, 400GbE PHY) and 5G mmWave beamforming. Every TSPS803R1003BUF unit ships with a compliance certificate including 3D resistance mapping data. Visit our product page to download IBIS models or schedule a video consultation.
Specifications
- Product Status: Active
- Circuit Type: Isolated
- Resistance (Ohms): 100k
- Tolerance: ±0.1%
- Number of Resistors: 4
- Resistor Matching Ratio: ±0.1%
- Resistor-Ratio-Drift: ±2ppm/°C
- Number of Pins: 8
- Power Per Element: 100mW
- Temperature Coefficient: ±25ppm/°C
- Operating Temperature: -55°C ~ 125°C
- Applications: -
- Mounting Type: Through Hole
- Package / Case: 8-SIP
- Supplier Device Package: -
- Size / Dimension: 0.783" L x 0.095" W (19.89mm x 2.41mm)
- Height - Seated (Max): 0.197" (5.00mm)
