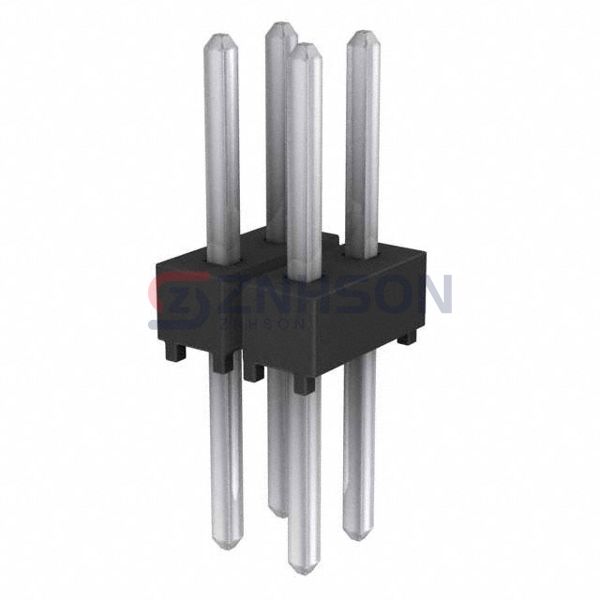

TSW-102-26-T-D
Samtec Inc.
Samtec Inc.
CONN HEADER VERT 4POS 2.54MM
$0.60
Available to order
Reference Price (USD)
1+
$0.60000
500+
$0.594
1000+
$0.588
1500+
$0.582
2000+
$0.576
2500+
$0.57
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The TSW-102-26-T-D Samtec Inc. Rectangular Connectors - Headers, Male Pins are the perfect choice for high-performance electronic connections. Designed for durability and efficiency, they support a wide range of applications, from automotive to IoT devices. Experience the Samtec Inc. difference today. Contact us for more details and a customized solution!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 4
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.230" (5.84mm)
- Contact Length - Post: 0.126" (3.20mm)
- Overall Contact Length: 0.456" (11.58mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -55°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
Related Products
Samtec Inc.
TFC-125-22-FM-D-A
JST Sales America Inc.
B6B-PH-SM4-TB(LF)(SN)
Samtec Inc.
TSW-133-07-L-S
Mill-Max Manufacturing Corp.
802-10-034-30-001000
Samtec Inc.
BBD-115-G-B
Hirose Electric Co Ltd
DF13C-15P-1.25V(51)
Samtec Inc.
TMM-105-05-L-S-SM
Samtec Inc.

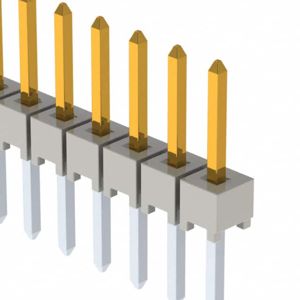

HTSW-136-08-L-S

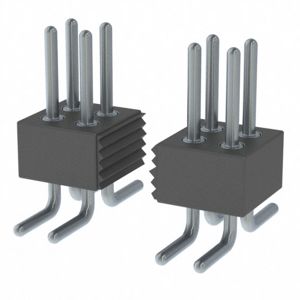

Mill-Max Manufacturing Corp.
