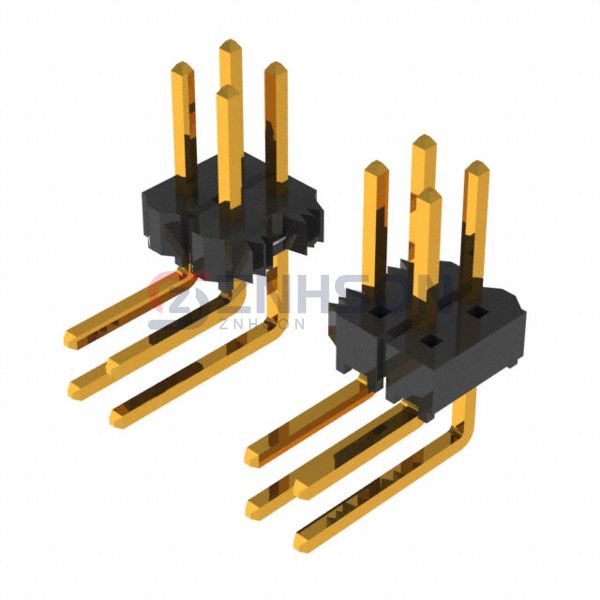

TSW-108-22-G-D-RA
Samtec Inc.
Samtec Inc.
CONN HEADER R/A 16POS 2.54MM
$2.99
Available to order
Reference Price (USD)
1+
$1.85000
10+
$1.67600
100+
$1.43640
500+
$1.19700
1,000+
$1.02600
5,000+
$0.90972
10,000+
$0.88920
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Boost your project's efficiency with TSW-108-22-G-D-RA Samtec Inc. Rectangular Connectors - Headers, Male Pins. These connectors ensure low insertion force, high mating cycles, and EMI shielding for superior performance. Ideal for medical equipment, robotics, and telecommunications. Need a quote? Contact us today and let s discuss your requirements!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 16
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.230" (5.84mm)
- Contact Length - Post: 0.190" (4.83mm)
- Overall Contact Length: -
- Insulation Height: 0.219" (5.56mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Gold
- Contact Material: Phosphor Bronze
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
Related Products
Samtec Inc.
TSM-118-01-T-SH-P
Sullins Connector Solutions
PBC01SBEN
Amphenol ICC (FCI)
68418-436HLF
TE Connectivity AMP Connectors
1-103310-0
Preci-Dip

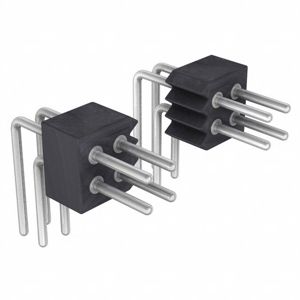

852-80-086-20-001101
