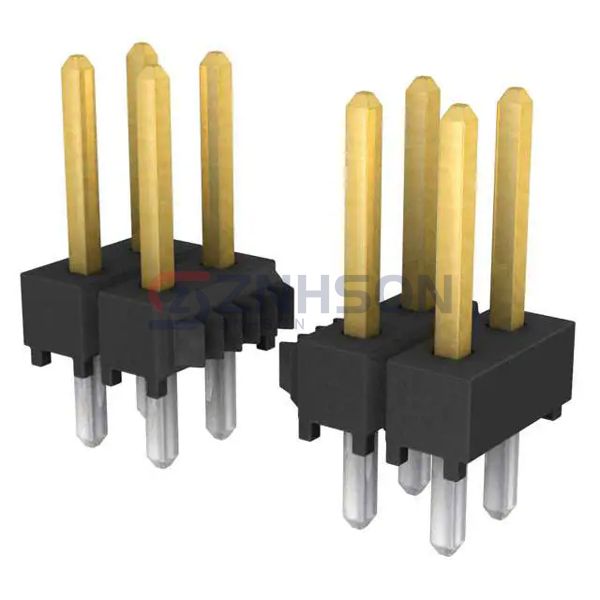

TSW-136-23-S-D
Samtec Inc.
Samtec Inc.
CONN HEADER VERT 72POS 2.54MM
$8.53
Available to order
Reference Price (USD)
1+
$8.11000
10+
$7.77000
25+
$7.09440
50+
$6.75640
100+
$6.41870
250+
$5.74300
500+
$5.40518
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The TSW-136-23-S-D Samtec Inc. Rectangular Connectors - Headers, Male Pins offer unmatched reliability for your electronic assembly needs. With features like corrosion resistance, high-temperature tolerance, and easy mating, these connectors are suited for aerospace, medical devices, and more. Trust Samtec Inc. for top-tier connectivity solutions. Interested? Get in touch today for pricing and availability!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 72
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.230" (5.84mm)
- Contact Length - Post: 0.115" (2.92mm)
- Overall Contact Length: 0.445" (11.30mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
Related Products
TE Connectivity AMP Connectors
644960-1
Samtec Inc.
FTSH-110-01-L-D-K
Molex
0015916049
Amphenol ICC (FCI)
77317-104-46LF
Molex
0015911504
Samtec Inc.
TMM-107-01-SM-D-SM
Samtec Inc.

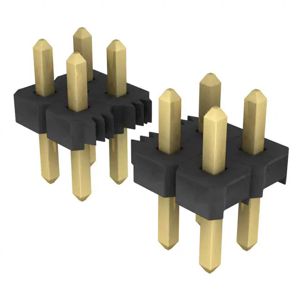

TLW-113-06-G-D
Samtec Inc.

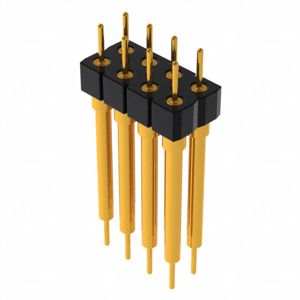

BBD-104-G-C
