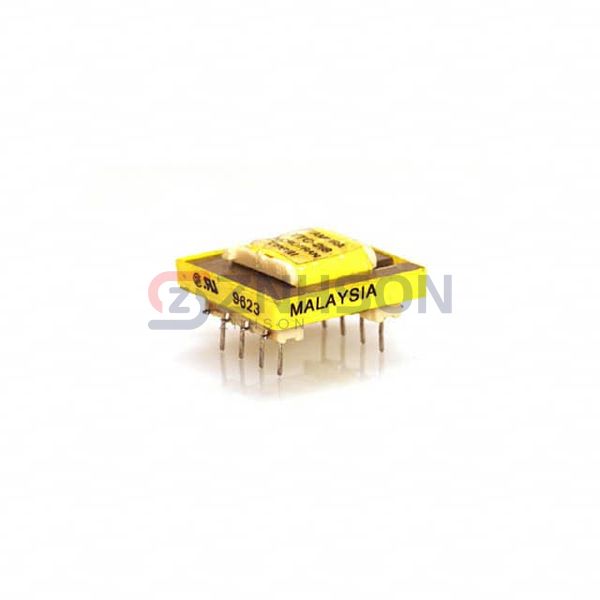

TTC-218
Tamura
Tamura
TRANSF TELE COUP 600 OHM 50MADC
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Boost your audio projects with Tamura TTC-218 Audio Transformers, known for their robust construction and exceptional sound quality. These transformers are ideal for a wide range of applications, from PA systems to musical instruments, providing reliable and distortion-free performance. Count on Tamura for excellence in every component. Contact us now to discuss your requirements.
Specifications
- Product Status: Obsolete
- Turns Ratio - Primary:Secondary: 1:1
- Impedance - Primary (Ohms): 600
- Impedance - Secondary (Ohms): 600
- DC Resistance (DCR) - Primary: 49Ohm
- DC Resistance (DCR) - Secondary: 76Ohm
- Transformer Type: Data/Voice Coupling
- Frequency Range: 660Hz ~ 3.5kHz
- Frequency Response: -1.8dB ~ 0.5dB
- Voltage - Isolation: 1500VRMS @ 1 Minute
- Insertion Loss: 1.8dB Max @ 2kHz
- Return Loss: -
- Power Level: -45dB ~ 7dB
- Operating Temperature: -
- Approval Agency: CSA-C22.2 No. 66-M1988, UL1863
- Mounting Type: Through Hole
- Size / Dimension: 0.839" L x 0.760" W (21.30mm x 19.30mm)
- Height - Seated (Max): 0.346" (8.80mm)
- Termination Style: PC Pin
