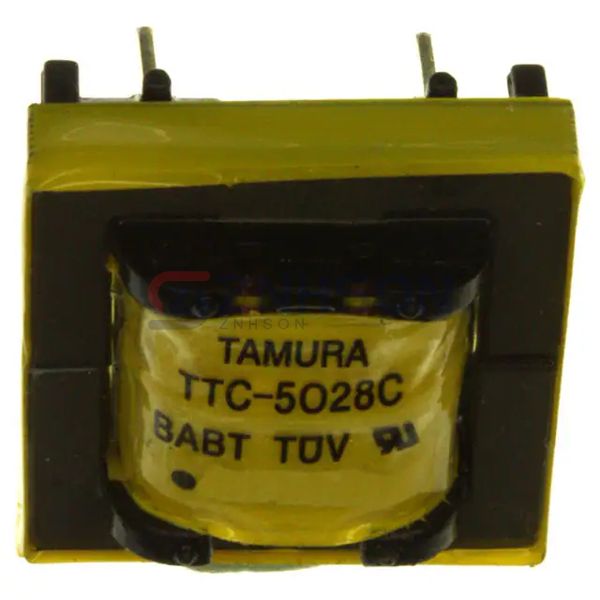

TTC-5028
Tamura
Tamura
TRANSFORMER TELECOMM 600:470 OHM
$4.07
Available to order
Reference Price (USD)
1+
$4.26000
10+
$3.45500
25+
$2.79320
50+
$2.61660
100+
$2.49900
250+
$2.42552
500+
$2.35200
1,000+
$2.27850
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your audio setups with Tamura TTC-5028 Audio Transformers, crafted for precision and high fidelity. Suitable for both professional and hobbyist applications, these transformers deliver excellent frequency response and isolation. Depend on Tamura for quality that exceeds expectations. Submit your inquiry now and take the first step toward superior audio performance.
Specifications
- Product Status: Active
- Turns Ratio - Primary:Secondary: 1:1
- Impedance - Primary (Ohms): 600
- Impedance - Secondary (Ohms): 470
- DC Resistance (DCR) - Primary: 92Ohm
- DC Resistance (DCR) - Secondary: 120Ohm
- Transformer Type: Data/Voice Coupling
- Frequency Range: 300Hz ~ 3.5kHz
- Frequency Response: ±1dB ~ ±4dB
- Voltage - Isolation: 1875VRMS @ 1 Second
- Insertion Loss: 2.5dB Max @ 1kHz
- Return Loss: -
- Power Level: -40dB ~ 4dB
- Operating Temperature: -
- Approval Agency: CSA-C22.2 No. 950-95, UL1950
- Mounting Type: Through Hole
- Size / Dimension: 0.886" L x 0.909" W (22.50mm x 23.10mm)
- Height - Seated (Max): 0.583" (14.80mm)
- Termination Style: PC Pin
