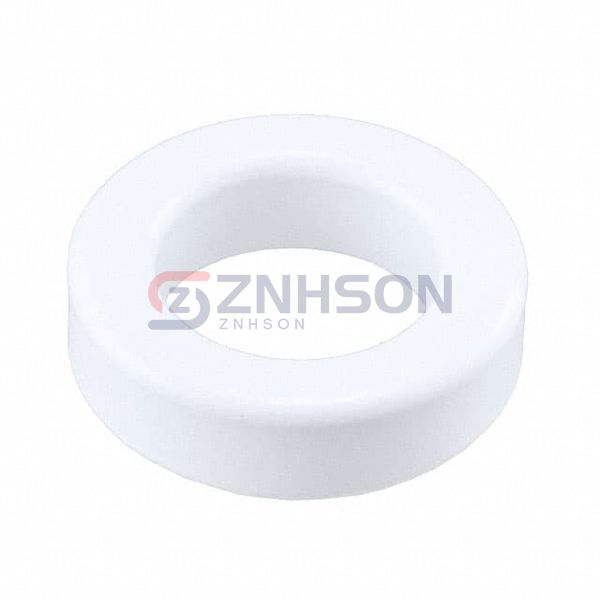

TX22/14/6.4-3C94
Ferroxcube
Ferroxcube
FERRITE CORES ROUND
$1.14
Available to order
Reference Price (USD)
1+
$0.95000
10+
$0.85500
25+
$0.63320
50+
$0.60140
100+
$0.53810
250+
$0.50644
500+
$0.47478
1,000+
$0.41148
5,000+
$0.39565
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your electronic systems with Ferroxcube TX22/14/6.4-3C94 Ferrite Cores, designed to deliver superior magnetic performance and durability. These cores are widely used in power conversion, signal processing, and noise filtering applications. Their high-frequency capabilities and thermal resilience make them ideal for advanced electronics. Whether for IoT devices or automotive applications, our Ferrite Cores stand out. Request a consultation with our experts to find the best solution for your needs!
Specifications
- Product Status: Active
- Core Type: Toroid
- Supplier Device Package: TX 22 x 14 x 6.4
- Material: 3C94
- Diameter: 0.880" (22.35mm)
- Inductance Factor (Al): -
- Tolerance: ±20%
- Gap: Ungapped
- Effective Permeability (µe): -
- Initial Permeability (µi): 2300
- Core Factor (ΣI/A) mm-1: 2.2
- Effective Length (le) mm: 54.2
- Effective Area (Ae) mm²: 24.8
- Minimum Core Cross Section (Amin) mm²: -
- Effective Magnetic Volume (Ve) mm³: 1340
- Finish: Epoxy
- Height: 0.265" (6.75mm)
- Length: -
- Width: -
