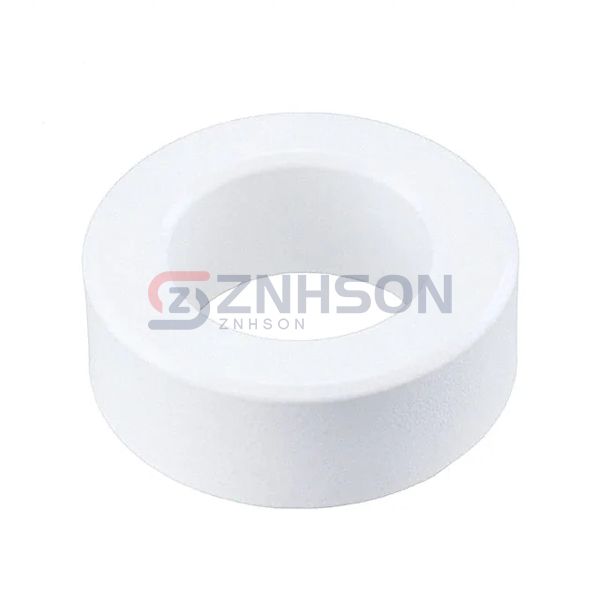

TX36/23/15-3E65
Ferroxcube
Ferroxcube
FERRITE CORES ROUND
$2.03
Available to order
Reference Price (USD)
1+
$3.05000
10+
$2.61500
25+
$1.96160
50+
$1.90700
100+
$1.68910
250+
$1.58012
500+
$1.47114
1,000+
$1.36218
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your electronic systems with Ferroxcube TX36/23/15-3E65 Ferrite Cores, designed to deliver superior magnetic performance and durability. These cores are widely used in power conversion, signal processing, and noise filtering applications. Their high-frequency capabilities and thermal resilience make them ideal for advanced electronics. Whether for IoT devices or automotive applications, our Ferrite Cores stand out. Request a consultation with our experts to find the best solution for your needs!
Specifications
- Product Status: Active
- Core Type: Toroid
- Supplier Device Package: TX 36 x 23 x 15
- Material: -
- Diameter: 1.463" (37.15mm)
- Inductance Factor (Al): -
- Tolerance: ±25%
- Gap: Ungapped
- Effective Permeability (µe): 5200
- Initial Permeability (µi): -
- Core Factor (ΣI/A) mm-1: 0.919
- Effective Length (le) mm: 89.7
- Effective Area (Ae) mm²: 97.5
- Minimum Core Cross Section (Amin) mm²: -
- Effective Magnetic Volume (Ve) mm³: 8740
- Finish: Epoxy
- Height: 0.630" (16.00mm)
- Length: -
- Width: -
