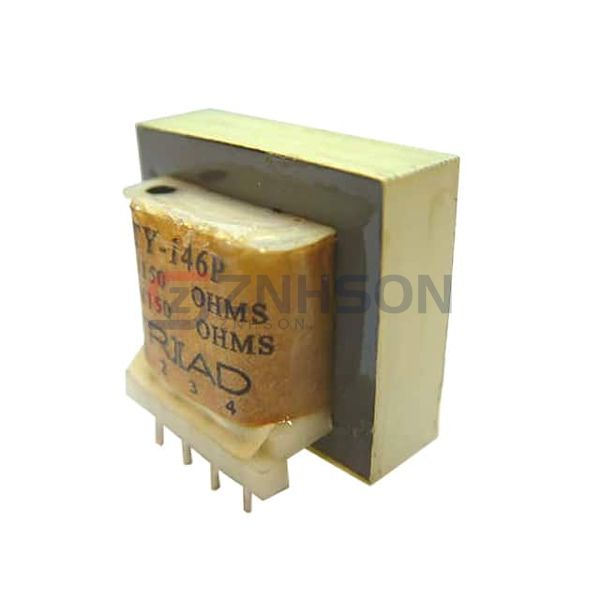

TY-146P-B
Triad Magnetics
Triad Magnetics
TRANSF 600 AUDIO CT 150/600CT 15
$5.58
Available to order
Reference Price (USD)
96+
$5.21313
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Maximize audio performance with Triad Magnetics TY-146P-B Audio Transformers, offering industry-leading quality and efficiency. These transformers are perfect for high-end audio equipment, delivering pristine sound reproduction. Choose Triad Magnetics for components that set the standard. Submit your inquiry now and take your audio projects to the next level.
Specifications
- Product Status: Active
- Turns Ratio - Primary:Secondary: 1:1
- Impedance - Primary (Ohms): 600, 150/150
- Impedance - Secondary (Ohms): 600, 150/150
- DC Resistance (DCR) - Primary: 17Ohm, 19Ohm
- DC Resistance (DCR) - Secondary: 14.5Ohm, 22Ohm
- Transformer Type: Data/Voice Coupling
- Frequency Range: 200Hz ~ 15kHz
- Frequency Response: ±2dB
- Voltage - Isolation: 1500V
- Insertion Loss: 1.5dB @ 1kHz
- Return Loss: 26dB
- Power Level: -
- Operating Temperature: -20°C ~ 85°C
- Approval Agency: -
- Mounting Type: Through Hole
- Size / Dimension: 1.375" L x 1.187" W (34.93mm x 30.15mm)
- Height - Seated (Max): 1.187" (30.15mm)
- Termination Style: PC Pin
