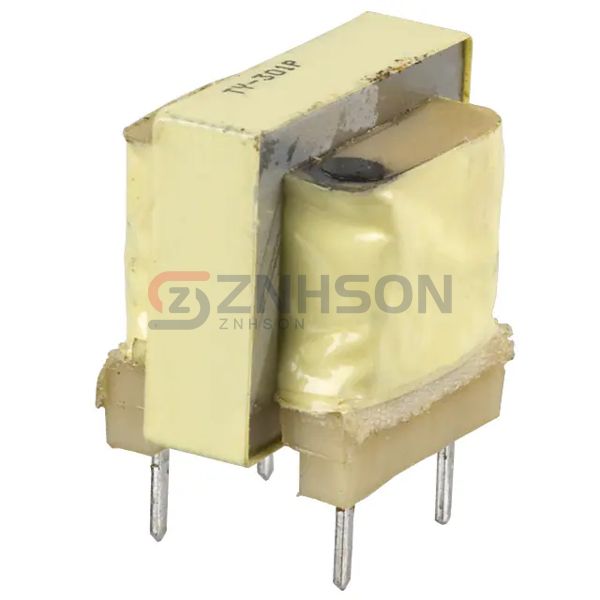

TY-301P
Triad Magnetics
Triad Magnetics
TRANSF 900 OHM SEC. 0MA DC TEL
$4.31
Available to order
Reference Price (USD)
25+
$4.01720
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Elevate your sound engineering with Triad Magnetics TY-301P Audio Transformers, designed for accuracy and durability. Widely used in audio interfaces, microphones, and speakers, these transformers ensure seamless signal conversion. Triad Magnetics is your go-to source for premium audio components. Get in touch today to learn more and place your order.
Specifications
- Product Status: Active
- Turns Ratio - Primary:Secondary: 1:1.27
- Impedance - Primary (Ohms): 600
- Impedance - Secondary (Ohms): 900
- DC Resistance (DCR) - Primary: 36Ohm
- DC Resistance (DCR) - Secondary: 76Ohm
- Transformer Type: Data/Voice Coupling
- Frequency Range: 300Hz ~ 3.5kHz
- Frequency Response: ±0.5dB
- Voltage - Isolation: 1500VAC
- Insertion Loss: 1dB Typ
- Return Loss: 26dB Typ
- Power Level: -45dB ~ 7dB
- Operating Temperature: -20°C ~ 85°C
- Approval Agency: -
- Mounting Type: Through Hole
- Size / Dimension: 0.812" L x 0.700" W (20.62mm x 17.78mm)
- Height - Seated (Max): 0.740" (18.80mm)
- Termination Style: PC Pin
