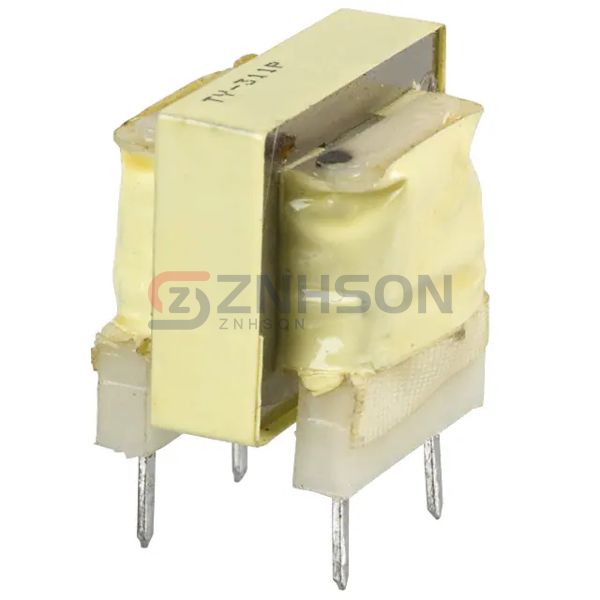

TY-311P-B
Triad Magnetics
Triad Magnetics
TRANSF 600 OHM 0MA DC TEL
$3.38
Available to order
Reference Price (USD)
1,200+
$3.00223
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Maximize audio performance with Triad Magnetics TY-311P-B Audio Transformers, offering industry-leading quality and efficiency. These transformers are perfect for high-end audio equipment, delivering pristine sound reproduction. Choose Triad Magnetics for components that set the standard. Submit your inquiry now and take your audio projects to the next level.
Specifications
- Product Status: Active
- Turns Ratio - Primary:Secondary: 1:1.05
- Impedance - Primary (Ohms): 600
- Impedance - Secondary (Ohms): 600
- DC Resistance (DCR) - Primary: 38Ohm
- DC Resistance (DCR) - Secondary: 53Ohm
- Transformer Type: Data/Voice Coupling
- Frequency Range: 300Hz ~ 3.5kHz
- Frequency Response: ±0.5dB
- Voltage - Isolation: 1500VAC
- Insertion Loss: 1dB Typ
- Return Loss: 26dB Typ
- Power Level: -45dB ~ 7dB
- Operating Temperature: -20°C ~ 85°C
- Approval Agency: -
- Mounting Type: Through Hole
- Size / Dimension: 0.812" L x 0.715" W (20.62mm x 18.16mm)
- Height - Seated (Max): 0.740" (18.80mm)
- Termination Style: PC Pin
