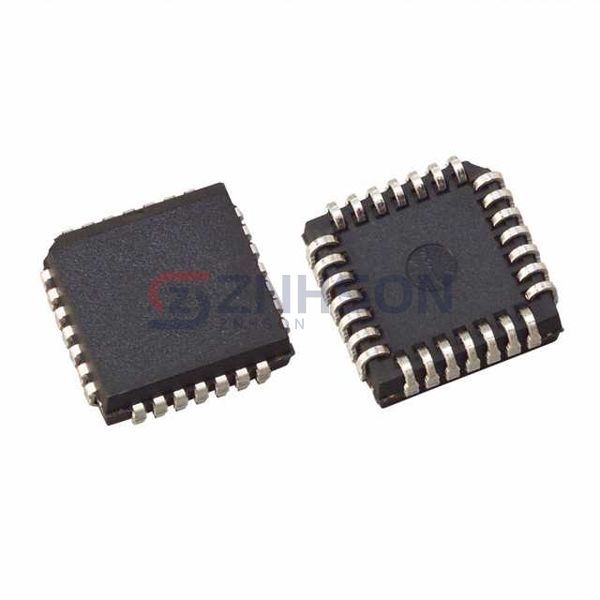

UC3770AQTR
Texas Instruments
Texas Instruments
IC BRIDGE DRIVER PAR 28PLCC
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The Texas Instruments UC3770AQTR represents cutting-edge PMIC bridge driver technology for demanding applications. Featuring low quiescent current, high noise immunity, and adaptive dead-time control, these drivers excel in automotive systems, power supplies, and robotics. The intelligent gate drive architecture minimizes switching losses while protecting against overcurrent and overtemperature conditions. Whether you need full or half-bridge solutions, these ICs deliver exceptional performance. Request a sample or quotation now to experience their superior quality firsthand.
Specifications
- Product Status: Obsolete
- Output Configuration: Half Bridge (2)
- Applications: General Purpose, Stepper Motors
- Interface: Logic
- Load Type: Inductive
- Technology: Bipolar
- Rds On (Typ): -
- Current - Output / Channel: 2A
- Current - Peak Output: -
- Voltage - Supply: 4.75V ~ 5.3V
- Voltage - Load: 10V ~ 45V
- Operating Temperature: 0°C ~ 150°C (TJ)
- Features: -
- Fault Protection: Over Temperature
- Mounting Type: Surface Mount
- Package / Case: 28-LCC (J-Lead)
- Supplier Device Package: 28-PLCC (11.51x11.51)
