UCC20225AQNPLRQ1
Texas Instruments
Texas Instruments
IC POWER MANAGEMENT
$6.36
Available to order
Reference Price (USD)
1+
$6.36000
500+
$6.2964
1000+
$6.2328
1500+
$6.1692
2000+
$6.1056
2500+
$6.042
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Trust Texas Instruments UCC20225AQNPLRQ1 Gate Driver Isolators for unmatched isolation performance in critical applications. These isolators feature wide input voltage range, high surge immunity, and compact footprints, making them perfect for automotive, defense, and IoT applications. Depend on us for quality and innovation request a quote now!
Specifications
- Product Status: Active
- Technology: Capacitive Coupling
- Number of Channels: 2
- Voltage - Isolation: 2500Vrms
- Common Mode Transient Immunity (Min): 100V/ns
- Propagation Delay tpLH / tpHL (Max): 30ns, 30ns
- Pulse Width Distortion (Max): 6ns
- Rise / Fall Time (Typ): 6ns, 7ns
- Current - Output High, Low: 4A, 6A
- Current - Peak Output: 4A, 6A
- Voltage - Forward (Vf) (Typ): -
- Current - DC Forward (If) (Max): -
- Voltage - Output Supply: 6.5V ~ 25V
- Operating Temperature: -40°C ~ 125°C
- Mounting Type: Surface Mount

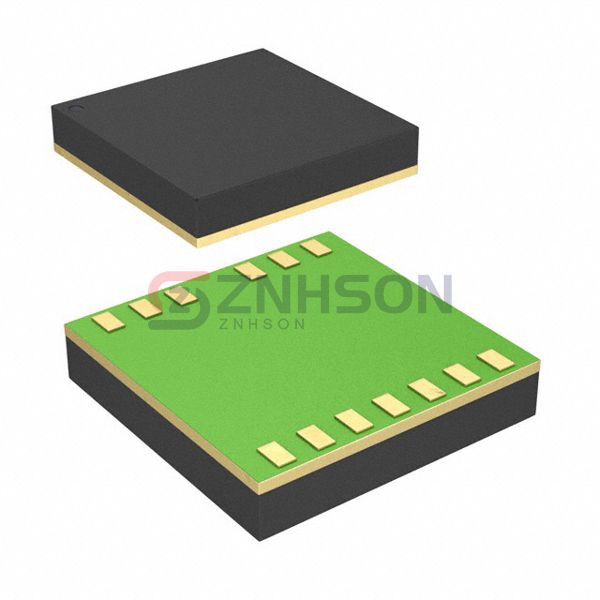

- Package / Case: 13-VFLGA
- Supplier Device Package: 13-VLGA (5x5)
- Approval Agency: CQC, UL, VDE
